ST STM32F103T8U7, ARM Cortex-M3 32-bit MCU, 72 MHz, 64 KB Flash, 20 KB RAM, CAN/USB/UART, 36-VFQFPN (6x6 mm), -40 to +105°C.
| Parameter | Value |
|---|---|
| Series | STM32F1 |
| Mounting | Surface Mount |
| Oscillator type | Internal |
| Program memory type | FLASH |
| Voltage - supply (Vcc (Vdd)) | 2V ~ 3.6V |
| Operating temperature | -40°C~105°C(TA) |
| Speed | 72MHz |
| Package | Tray |
| RAM size | 20K x 8 |
| Core size | 32-Bit Single-Core |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Number of i (O) | 26 |
| Core processor | ARM® Cortex®-M3 |
| Case | 36-VFQFN Exposed Pad |
| Data converters | A/D 10x12b |
| Program memory size | 64KB (64K x 8) |
72 MHz supports a CANopen stack with a USB virtual-comport bridge. 64 KB Flash holds a moderate application; 20 KB RAM handles data buffers and a small RTOS heap.
The STM32F103T8U7 carries an Active status from ST, though some distribution channels flag end-of-life indicators for the T8 density variant in this package.
ST lists the STM32F103T8U7 as Active, though some channel data shows an end-of-life indicator for this density/package combination. The part is available to order through independent distribution; submit an RFQ for current lifecycle confirmation and stock position.
The STM32F103T8U7 is rated for -40°C to 105°C, covering industrial and automotive under-hood environments without derating.

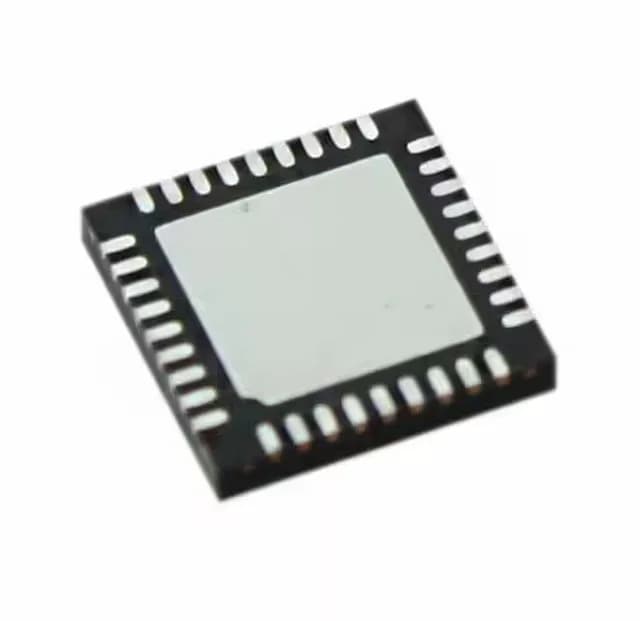

It comes in a 36-VFQFPN (6x6 mm) with an exposed pad — a compact surface-mount package that requires reflow soldering.
The STM32F103C8T6 has the same 64 KB Flash and 20 KB RAM but in a larger LQFP-48 package with 37 I/O, while the T8U7 is a 36-VFQFPN with 26 I/O. The C8T6 is easier to hand-solder and has more GPIO; the T8U7 saves board space.
The core runs at 72 MHz, which is the maximum for the STM32F103 series.
