STMicroelectronics STM32F098CCT7 — Microcontrollers & Processors (MCU / MPU / DSP)

STM32F098CCT7 STM32F0 ARM Cortex-M0 MCU, 48 MHz

MPNSTM32F098CCT7
Active

STMicroelectronics STM32F0 series, ARM Cortex-M0 32-bit MCU, STM32F098CCT7, 48 MHz, 256KB Flash, 32K x 8 RAM, 37 I/O, CANbus/I²C/SPI/UART, 48-LQFP, -40°C~105°C.

$3.8169Ref. price · indicative, final on quote
STMicroelectronics STM32F098CCT7 datasheet (PDF)
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

STM32F098CCT7 specifications
ParameterValue
SeriesSTM32F0
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.65V ~ 3.6V
Operating temperature-40°C~105°C(TA)
Speed48MHz
PackageTray
RAM size32K x 8
Core size32-Bit Single-Core
PeripheralsDMA, I²S, POR, PWM, WDT
ConnectivityCANbus, I²C, IrDA, LINbus, SPI, UART/USART
Number of i (O)37
Core processorARM® Cortex®-M0
Case48-LQFP
Data convertersA/D 13x12b; D/A 2x12b
Program memory size256KB (256K x 8)

Product details

What this M0 MCU brings to a control board

Package and footprint — 48-LQFP

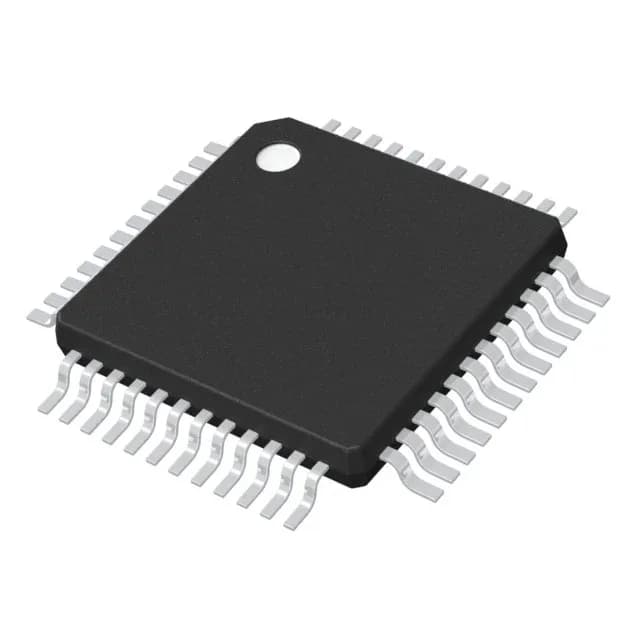

Housed in a 48-LQFP with a 7x7 mm body, the STM32F098CCT7 is a surface-mount part with a 0.5 mm pitch. The 48-pin QFP gives 37 usable I/O, leaving the rest for supply, ground, and oscillator pins. The supplier device package is 48-LQFP (7x7) — the same footprint as other STM32F0 48-pin LQFP devices, so a board layout can be shared across density options in the family.

There is no NRND notice or last-time-buy date to track.

Frequently asked questions

Is STM32F098CCT7 compatible with STM32F098CCT6?

The base product number is STM32F098 for both, and they share the same 48-LQFP package and 48 MHz core. For pin-to-pin compatibility, compare the datasheet's ordering information table to confirm the specific variant differences.

Is STM32F098CCT7 obsolete?

No — the lifecycle stage is Active, meaning STMicroelectronics is still manufacturing this part. There is no discontinuation notice or last-time-buy schedule in effect.
