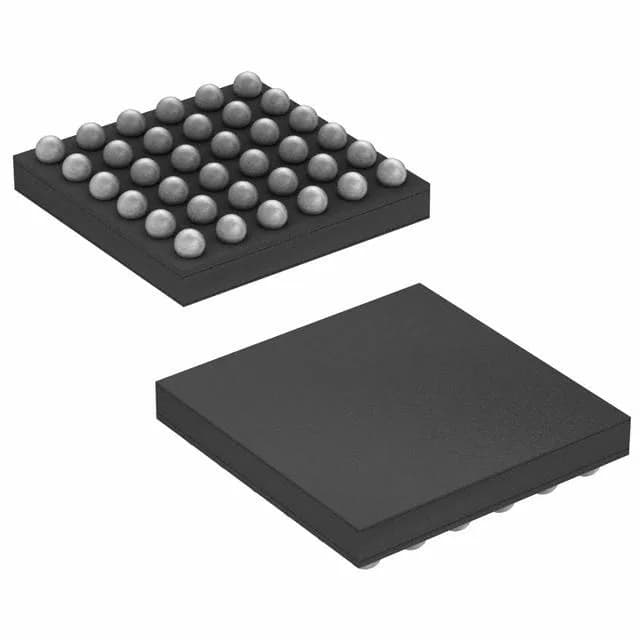

STMicroelectronics STM32F058T8Y6TR — Microcontrollers & Processors (MCU / MPU / DSP)

STM32F058T8Y6TR ARM Cortex-M0 MCU, 48 MHz, 64 KB Flash

MPNSTM32F058T8Y6TR
Active

STMicroelectronics STM32F0 series, ARM Cortex-M0, 32-Bit Single-Core MCU, 48MHz, 64KB (64K x 8) FLASH, 8K x 8 RAM, 1.65V~3.6V, 28 I/O, -40°C~85°C, 36-WLCSP, Tape & Reel.

$2.1787Ref. price · indicative, final on quote
STMicroelectronics STM32F058T8Y6TR datasheet (PDF)
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

STM32F058T8Y6TR specifications
ParameterValue
SeriesSTM32F0
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.65V ~ 3.6V
Operating temperature-40°C~85°C(TA)
Speed48MHz
PackageTape & Reel (TR)
RAM size8K x 8
Core size32-Bit Single-Core
PeripheralsDMA, I²S, POR, PWM, WDT
ConnectivityHDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART
Number of i (O)28
Core processorARM® Cortex®-M0
Case36-UFBGA, WLCSP
Data convertersA/D 13x12b; D/A 1x12b
Program memory size64KB (64K x 8)

Product details

Peripheral set and I/O — what connects where

The STM32F058T8Y6TR: The 13-channel 12-bit ADC and single 12-bit DAC handle analog sensor conditioning and simple waveform generation.

WLCSP package — what it means for assembly and rework

The 36-ball WLCSP (0.4 mm pitch typical) demands a clean stencil and a reflow profile matched to the solder-ball alloy. No exposed paddle — thermal dissipation relies on the PCB copper plane under the package. The small ball diameter means visual inspection under a microscope; X-ray is recommended for hidden solder-joint voids. Hot-air rework is possible with a fine nozzle, but the risk of adjacent component displacement is higher than with a QFN.

For dual-sourcing resilience, the STM32F0 family includes pin-compatible density variants (e.g., 32 KB Flash / 6 KB RAM) that share the same WLCSP footprint, though the exact RAM and Flash sizes differ.

Frequently asked questions

What are the alternatives to STM32F058T8Y6TR?

Within the STM32F0 family, pin-compatible WLCSP variants with different Flash/RAM densities exist — for example, the STM32F058C8U6 (48-pin UFQFPN) shares the same core and peripheral set but uses a larger package. No exact pin-for-pin second source from another manufacturer is listed; for a drop-in replacement, stick to the same base product number (STM32F058) with the desired Flash and RAM size.
