STMicroelectronics STM32F048C6U6TR — Microcontrollers & Processors (MCU / MPU / DSP)

STM32F048C6U6TR ARM Cortex-M0 MCU, 48 MHz, 32 KB Flash

MPNSTM32F048C6U6TR
Active

STMicroelectronics STM32F0 series, ARM® Cortex®-M0 32-Bit MCU, 48MHz, 32KB Flash, 6K x 8 RAM, 1.65V ~ 1.95V, -40°C ~ 85°C, 48-UFQFN Exposed Pad, Tape & Reel.

$1.9722Ref. price · indicative, final on quote
STMicroelectronics STM32F048C6U6TR datasheet (PDF)
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

STM32F048C6U6TR specifications
ParameterValue
SeriesSTM32F0
MountingSurface Mount
Oscillator typeInternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.65V ~ 1.95V
Operating temperature-40°C ~ 85°C (TA)
Speed48MHz
PackageTape & Reel (TR)
RAM size6K x 8
Core size32-Bit Single-Core
PeripheralsDMA, I²S, POR, PWM, WDT
ConnectivityHDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB
Number of i (O)38
Core processorARM® Cortex®-M0

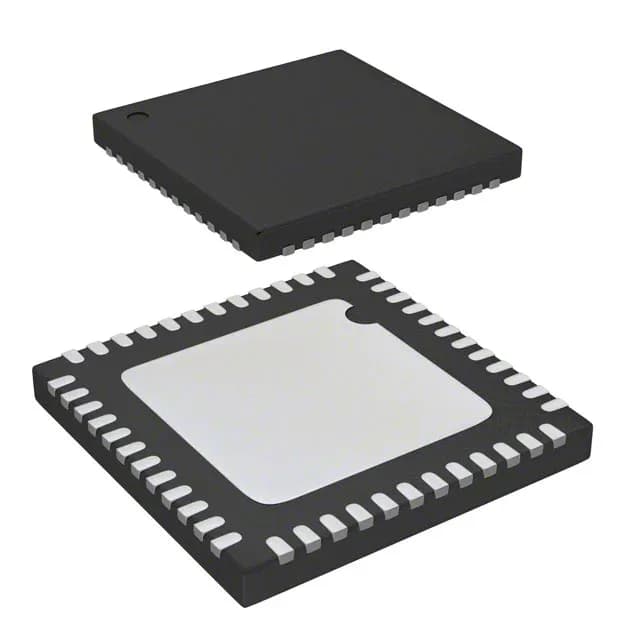

Case48-UFQFN Exposed Pad
Data convertersA/D 13x12b
Program memory size32KB (32K x 8)

Product details

48 MHz Cortex-M0 in a 1.8 V-only QFN

The STM32F048C6U6TR: The 48-UFQFN exposed pad package (7x7 mm) keeps board area small and thermal transfer direct to the PCB ground plane.

Supply voltage — the 1.8 V-only constraint

The 1.65 V to 1.95 V supply is the single most important BOM constraint. It is not a 3.3 V part and cannot tolerate 2.5 V or 3.0 V on VDD. The upside is very low dynamic power at 48 MHz and compatibility with 1.8 V logic families without level shifters on the I/O.

The base product number is STM32F048, so any future PCN or die revision will carry that root.

Frequently asked questions

What is the closest pin-compatible alternative to STM32F048C6U6TR?

Within the STM32F0 series, the STM32F042 family shares the same 48-UFQFPN footprint and 1.8 V supply range, but memory and peripheral options differ. The STM32F048C6U6TR is distinguished by its 32 KB Flash and HDMI-CEC peripheral. For a direct drop-in, verify the specific memory and feature set against your firmware requirements.

Where can I find the STM32F048C6U6TR datasheet?

The full datasheet and reference manual are published by STMicroelectronics under the base product number STM32F048. It covers the 48 MHz Cortex-M0 core, memory map, peripheral registers, and electrical characteristics including the 1.65 V to 1.95 V supply range.
