STMicroelectronics STL7N60M2

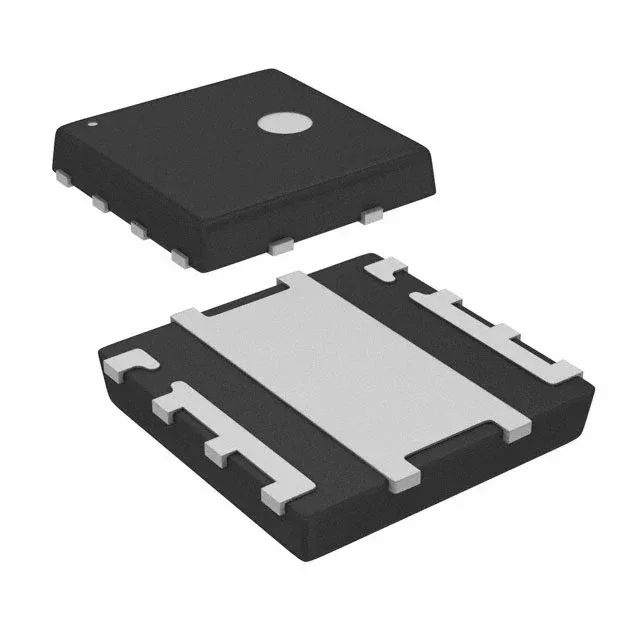

STL7N60M2 MOSFET, N-Ch 600V 5A PowerFLAT 5x5

MPNSTL7N60M2
End of Life

STMicroelectronics MDmesh™ STL7N60M2, N-Channel MOSFET, 600V Vdss, 5A Id, 1.05Ohm Rds(on) @ 10V, 8.8nC Qg, PowerFLAT™ 5x5 surface-mount package, 150°C junction temperature.

$1.6Ref. price · indicative, final on quote
STMicroelectronics STL7N60M2 datasheet (PDF)
Packaging8-PowerVDFN
RoHSROHS3 Compliant
SeriesMDmesh™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

STL7N60M2 specifications
ParameterValue
SeriesMDmesh™
FET typeN-Channel
MountingSurface Mount
Drain to source voltage600 V
Drive voltage (Max rds on, min rds on)10V
Current - continuous drain (Id) @ 25°C5A (Tc)
Power dissipation4W (Ta), 67W (Tc)
Operating temperature150°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
Vgs±25V
TechnologyMOSFET (Metal Oxide)
Case8-PowerVDFN
Vgs(th) (Max) @ id4V @ 250µA
Rds on (Max) @ id, vgs1.05Ohm @ 2A, 10V
Gate charge (Qg) (Max) @ vgs8.8 nC @ 10 V
Input capacitance (Ciss) (Max) @ vds271 pF @ 100 V

Product details

600 V N-channel in a PowerFLAT 5x5 — MDmesh M2 primary switch

The STL7N60M2 is a 600 V, 5 A N-channel MOSFET from ST's MDmesh M2 series, housed in a PowerFLAT 5x5 surface-mount package.

At 1.05 Ω max with 10 V on the gate, the STL7N60M2's on-resistance is sized for a flyback output at 600 V bus. The 8.8 nC gate charge keeps gate-drive losses low enough that a simple bootstrap driver can switch it cleanly.

The PowerFLAT 5x5 (8-lead PowerVDFN) is a leadless, exposed-pad package. The 67 W power dissipation at the case (Tc) assumes the pad is soldered to a copper island on the PCB with adequate via stitching to inner layers. The 4 W dissipation at ambient (Ta) reflects a free-air board with no intentional heatsink — a number to use only for light-load or standby conditions. For continuous 5 A operation, the thermal design must pull heat into the board plane.

No immediate LTB risk for production programs.

Frequently asked questions

What are the alternatives to the STL7N60M2?

The STP7NK60Z is a through-hole DPAK alternative with similar voltage and current ratings, but it is not pin-compatible — the PowerFLAT footprint differs. For a surface-mount drop-in, stay within the MDmesh M2 PowerFLAT 5x5 family; the STL7N60M2 is the 5 A entry point.

What is the Rds(on) of the STL7N60M2?

The maximum on-resistance is 1.05 Ω at 2 A drain current with 10 V gate-to-source drive.

Is the STL7N60M2 RoHS compliant?

Yes, the STL7N60M2 is rated ROHS3 Compliant.
