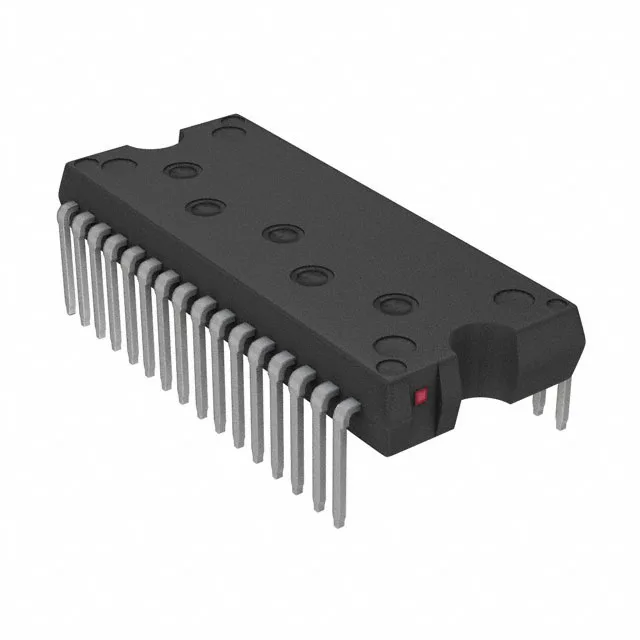

STMicroelectronics STGIPQ3H60T-HL, IGBT Driver - Fully Integrated, Control and Power Stage, 500V Max Load, 13.5V-18V Supply, Half Bridge (3), Through Hole, 26-DIP Module, -40°C to 150°C.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Motor type - AC, DC | AC, Synchronous |
| Voltage - load | 500V (Max) |
| Supply voltage | 13.5V ~ 18V |
| Operating temperature | -40°C ~ 150°C (TJ) |
| Package | Tube |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Technology | IGBT |
| Applications | Appliance |
| Case | 26-DIP Module |
| Output configuration | Half Bridge (3) |
The through-hole module (supplier device package 26-N2DIP) is hand-soldered or wave-soldered onto the PCB. For MRO stock, store the tubes in a dry cabinet.
No obsolescence notice, no last-time-buy window. That means you can still design it into new builds and expect standard lead times through distribution.
This part is available to order through independent distribution. Submit an RFQ for current pricing and availability — stock levels and lead times are confirmed at quote time.
No official replacement is listed because the part is still active. If a replacement is needed in the future, check ST's SLLIMM series for pin-compatible options.
Yes. It is rated for a 500V maximum load voltage and is specifically intended for appliance applications such as washing machines and compressors.
