STMicroelectronics M95512-DFCS6TP/K — Discrete Semiconductors

STMicroelectronics M95512-DFCS6TP/K EEPROM, 512Kbit SPI

MPNM95512-DFCS6TP/K
End of Life

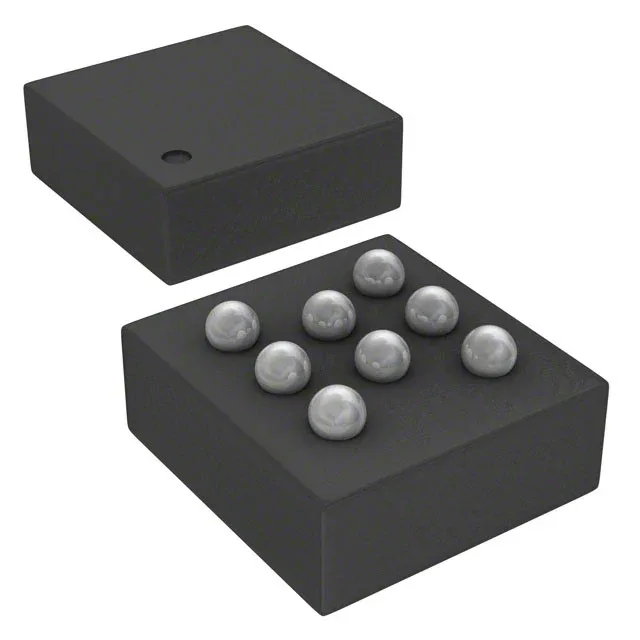

STMicroelectronics M95512-DFCS6TP/K, 512Kbit SPI EEPROM, 16 MHz clock, 1.7V-5.5V supply, 64K x 8 organization, -40°C to 85°C, 8-WLCSP package.

$1.17Ref. price · indicative, final on quote
Packaging8-UFBGA, WLCSP
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

M95512-DFCS6TP/K specifications
ParameterValue
Memory typeNon-Volatile
MountingSurface Mount
Supply voltage1.7V ~ 5.5V
Clock frequency16 MHz
Memory interfaceSPI
Operating temperature-40°C ~ 85°C (TA)
PackageTape & Reel (TR); Cut Tape (CT)
TechnologyEEPROM
Memory size512Kbit
Memory formatEEPROM
Case8-UFBGA, WLCSP
Memory organization64K x 8
Write cycle time - word, page5ms

Product details

It is ROHS3 compliant. The WLCSP package is moisture-sensitive; store the reels in a dry cabinet or use a moisture-barrier bag with desiccant.

Write cycle timing and endurance

The write cycle time for a word or page is 5 ms. That is typical for this EEPROM family; if your application writes frequently, account for the write-cycle delay in the firmware timing loop. The part uses a standard SPI interface, so no external pull-up resistors are required on the data lines unless the bus has long traces or multiple slaves.

Frequently asked questions

Is M95512-DFCS6TP/K compatible with 5V logic?

Yes. The supply voltage range of 1.7V to 5.5V means the part can operate directly on a 5V SPI bus without level shifting.

Does M95512-DFCS6TP/K require external pull-up resistors?

No. The SPI interface is standard and does not require external pull-up resistors on the data lines for normal operation. Long bus traces or multiple slaves may still benefit from pull-ups, but the EEPROM itself does not mandate them.
