STMicroelectronics IPS4260LTR — Power Management (PMIC / Gate Driver)

IPS4260LTR STMicro Low-Side Power Switch, 4-Ch 2A 7-50V

MPNIPS4260LTR
Active

STMicroelectronics IPS4260LTR, Power Management (PMIC / Gate Driver), low-side N-channel power switch, 4 outputs, 2A max per channel, 7V-50V load voltage, 280mOhm typical Rds(on), 20-HTSSOP exposed pad, active production.

$4.5300Ref. price · indicative, final on quote
STMicroelectronics IPS4260LTR datasheet (PDF)

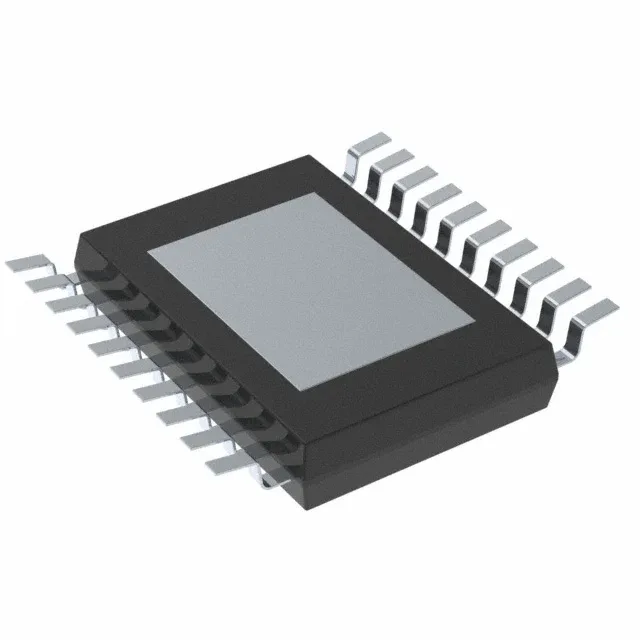

Packaging20-TSSOP (0.173", 4.40mm Width) Exposed Pad
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

IPS4260LTR specifications
ParameterValue
Output typeN-Channel
TypeGeneral Purpose
MountingSurface Mount
Voltage - load7V ~ 50V
Voltage - supply (Vcc (Vdd))Not Required
Output current2A
I/O channels4
InterfaceOn/Off
Operating temperature-40°C ~ 125°C (TJ)
PackageTape & Reel (TR) Cut Tape (CT)
Rds on280mOhm
Case20-TSSOP (0.173\", 4.40mm Width) Exposed Pad
Fault protectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature
Output configurationLow Side
Ratio - Input:Output1:1

Product details

Four 2A low-side channels in a single 20-HTSSOP

The IPS4260LTR integrates four N-channel low-side power switches rated 2A max each into a 20-HTSSOP with exposed pad. The 280 mOhm typical on-resistance keeps conduction losses low across the 7V–50V load supply range.

Fault protection set reduces external supervision

Fixed current limiting, open-load detection, and over-temperature shutdown are built in, so the MCU or PLC digital output only needs to toggle the On/Off interface — no external sense resistor or comparator needed per channel. The open-load detect is especially useful for solenoid or lamp diagnostics in automotive body modules.

Active lifecycle with ROHS3 compliance

Industrial and automotive temperature grade

No external Vcc supply needed — the switch is self-powered from the load rail.
