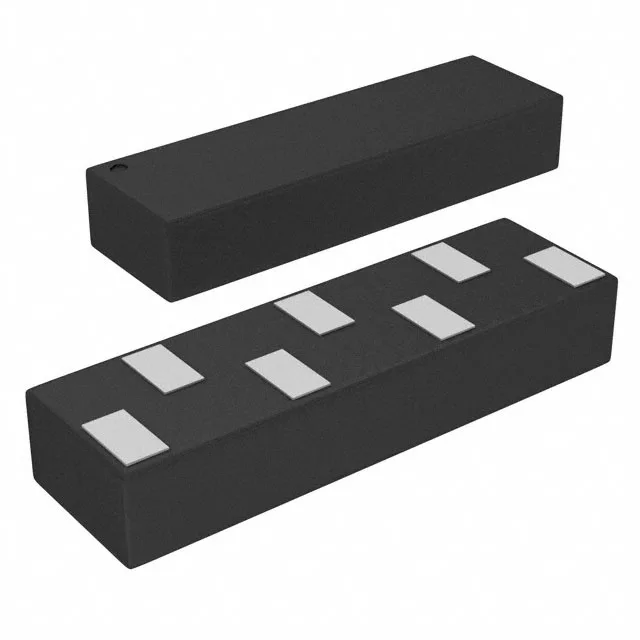

Semtech Corporation RCLAMP3346PQTNT
MPNRCLAMP3346PQTNT
Active
$1.5300Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Steering (Rail to Rail) |
| Series | RailClamp® |
| Mounting | Surface Mount |
| Voltage - breakdown | 7V |
| Voltage - clamping (Max) @ ipp | 4.5V |
| Voltage - reverse standoff | 3.3V (Max) |
| Current - peak pulse (10/1000μs) | 4.5A (8/20µs) |
| Power line protection | No |
| Capacitance @ frequency | 0.6pF @ 1MHz |
| Operating temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Applications | USB |
| Qualification | AEC-Q100 |
| Case | 7-UDFN |
| Unidirectional channels | 6 |
