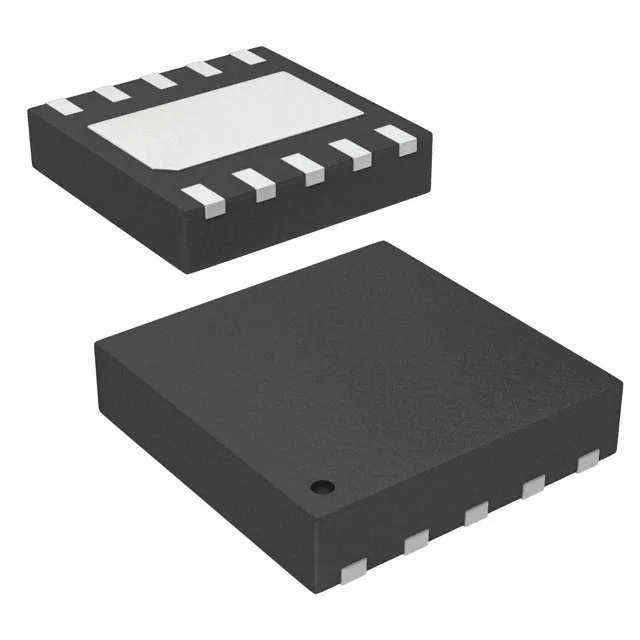

Semtech Corporation RCLAMP3304N.TCT
MPNRCLAMP3304N.TCT
NRND
$1.6400Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Steering (Rail to Rail) |
| Series | RailClamp® |
| Mounting | Surface Mount |
| Voltage - breakdown | 3.5V |
| Voltage - clamping (Max) @ ipp | 18V |
| Voltage - reverse standoff | 3.3V (Max) |
| Current - peak pulse (10/1000μs) | 25A (8/20µs) |
| Power - peak pulse | 450W |
| Power line protection | Yes |
| Capacitance @ frequency | 3.8pF @ 1MHz |
| Operating temperature | -55°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Applications | General Purpose |
| Case | 10-UFDFN Exposed Pad |
| Unidirectional channels | 4 |
