Renesas Electronics R7FA2E1A52DFL#AA0 — Signal Isolation
Renesas Electronics

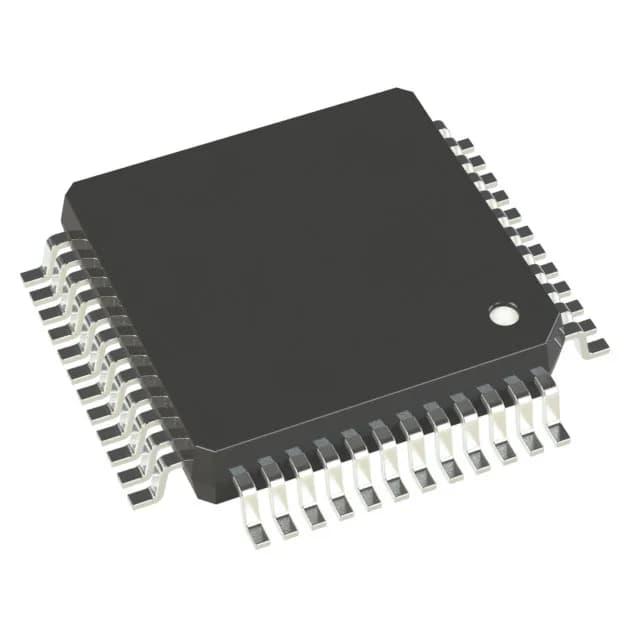

R7FA2E1A52DFL#AA0 Renesas RA2E1 MCU, 48 MHz, 32 KB Flash

MPNR7FA2E1A52DFL#AA0
End of Life

Renesas RA2E1 series, ARM Cortex-M23 32-bit MCU, R7FA2E1A52DFL#AA0, 48 MHz, 32 KB Flash, 16 KB RAM, 4 KB EEPROM, 48-LQFP, -40°C to 85°C.

$2.44Ref. price · indicative, final on quote
R7FA2E1A52DFL#AA0 datasheet
Packaging48-LQFP
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

R7FA2E1A52DFL#AA0 Technical Specifications
ParameterValue
SeriesRA2E1
Mounting typeSurface Mount
Oscillator typeExternal
Program memory typeFLASH
Voltage - supply (Vcc (Vdd))1.6V ~ 5.5V
Operating temperature-40°C ~ 85°C (TA)
Speed48MHz
PackageTray
RAM size16K x 8
Core size32-Bit Single-Core
EEPROM size4K x 8
PeripheralsDMA, LVD, POR, PWM, WDT
ConnectivityI²C, SPI, UART/USART
Number of i (O)40
Core processorARM® Cortex®-M23
Case48-LQFP
Data convertersA/D 13x12b SAR
Program memory size32KB (32K x 8)

Product details

48 MHz Cortex-M23 in a 48-LQFP — what this MCU brings to the BOM

The Renesas R7FA2E1A52DFL#AA0 is a 32-bit ARM Cortex-M23 single-core MCU from the RA2E1 series, clocked at 48 MHz. It carries 32 KB of Flash program memory, 16 KB of RAM, and 4 KB of EEPROM.

Memory sizing and the firmware budget

32 KB Flash is the entry-level tier for the RA2E1 family — fine for a sensor hub, a keypad controller, or a simple motor-commutation routine. If your firmware needs a full RTOS plus a TCP/IP stack, you will bump into the ceiling. The 4 KB EEPROM is a separate block, not emulated in Flash, so you can store calibration constants or fault logs without wearing the main program memory.

Peripherals and connectivity

On-chip peripherals include DMA, LVD, POR, PWM, and WDT. Serial connectivity covers I²C, SPI, and UART/USART — enough for a Modbus RTU slave, an I²C sensor bus, or a debug UART. No CAN or USB, so if you need a fieldbus gateway, look at the RA2L1 sibling with CAN.

Lifecycle and sourcing posture

Renesas lists the R7FA2E1A52DFL#AA0 as Active and ROHS3 compliant. No NRND or EOL notice. The RA2E1 series is current-production.

Frequently asked questions

Is R7FA2E1A52DFL#AA0 obsolete?

No — Renesas lists this part as Active, with no end-of-life notice. It is a current-production device suitable for new designs.

Is R7FA2E1A52DFL#AA0 RoHS compliant?

Yes, it is ROHS3 compliant per Renesas.

What is the direct equivalent of R7FA2E1A52DFL#AA0?

The closest pin-compatible alternate is the R7FA2E1A52DNH#AA0, which shares the same Cortex-M23 core, 48 MHz clock, 32 KB Flash, and 16 KB RAM, but in a 32-pin package with 23 I/O. For a drop-in replacement with the same 48-LQFP footprint, there is no exact second source — the RA2E1 series is single-sourced by Renesas.
