How do the onsemi onsemi FDMS Series variants differ?

onsemi FDMS Series part numbers differ by package, case, current - continuous drain (Id) @ 25°C and drain to source voltage. Use the selection guide above to pick by package.

How many onsemi onsemi FDMS Series part numbers are listed?

8 onsemi onsemi FDMS Series part numbers are listed, each with specifications and a datasheet where available.

onsemi FDMS Series

8 variants · onsemi

About the onsemi onsemi FDMS Series series

The onsemi onsemi FDMS Series series groups 8 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by package, case and current - continuous drain (Id) @ 25°C, so you can match the exact package your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current onsemi FDMS Series variants and discontinued ones from a single page.

Select a variant by

Package: Bulk · Tape & Reel (TR) · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Case: 8-PowerTDFN · 8-PowerWDFN
Current - continuous drain (Id) @ 25°C: 10A · 10.1A, 12.4A · 13A, 18A · 13A, 27A · 15A, 26A · 15A, 30A
Drain to source voltage: 25V · 30V · 100V
Gate charge (Qg) (Max) @ vgs: 11nC @ 10V · 24nC @ 10V · 27nC @ 10V · 29nC @ 10V
Input capacitance (Ciss) (Max) @ vds: 608pF @ 15V · 1605pF @ 15V · 1695pF @ 15V · 1770pF @ 13V · 1800pF @ 50V
Operating temperature: -55°C ~ 150°C (TJ) · -55°C~150°C(TJ)

Variant comparison

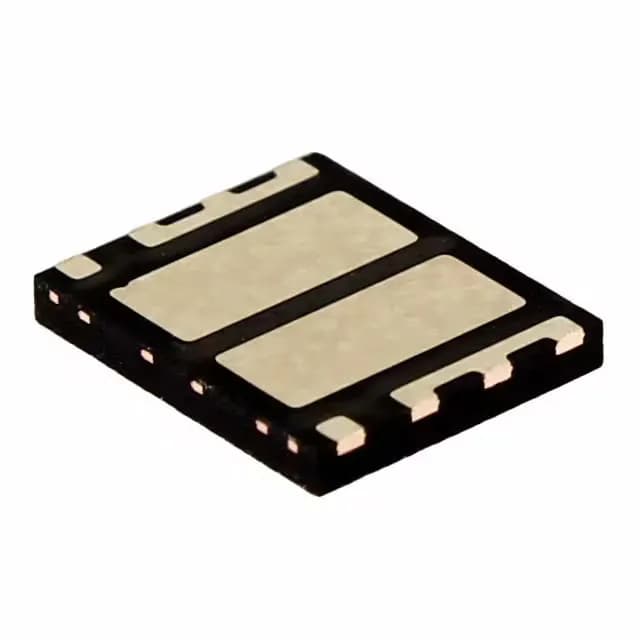

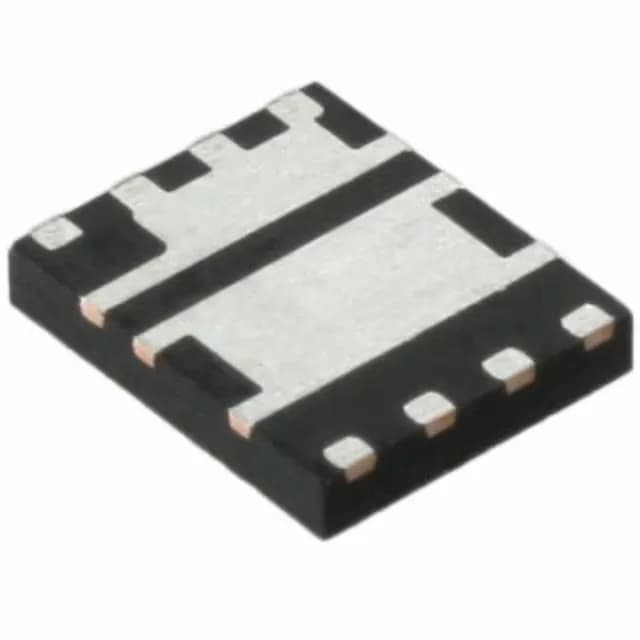

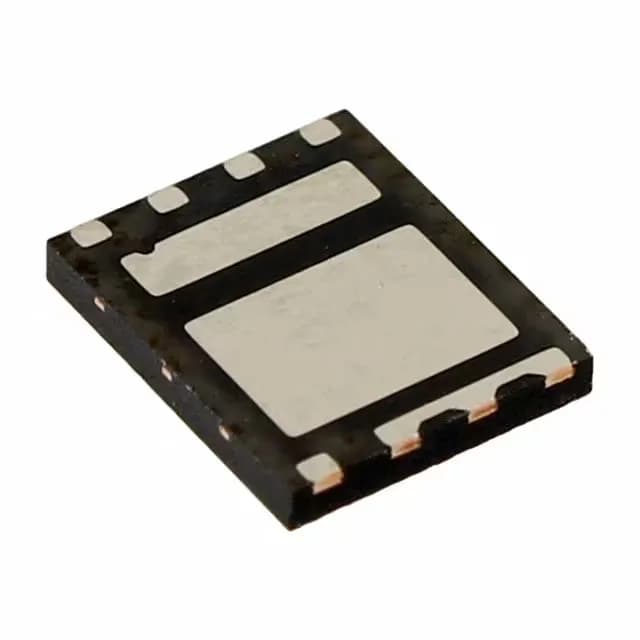

Parameter	FDMS3600AS	FDMS3602AS	FDMS3606AS	FDMS3669S	FDMS7620S	FDMS8090
Package	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)
Case	8-PowerTDFN	8-PowerTDFN	8-PowerTDFN	8-PowerTDFN	8-PowerWDFN	8-PowerWDFN
Current - continuous drain (Id) @ 25°C	15A, 30A	15A, 26A	13A, 27A	13A, 18A	10.1A, 12.4A	10A
Drain to source voltage	25V	25V	30V	30V	30V	100V
Gate charge (Qg) (Max) @ vgs	27nC @ 10V	27nC @ 10V	29nC @ 10V	24nC @ 10V	11nC @ 10V	27nC @ 10V
Input capacitance (Ciss) (Max) @ vds	1770pF @ 13V	1770pF @ 13V	1695pF @ 15V	1605pF @ 15V	608pF @ 15V	1800pF @ 50V
Operating temperature	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C~150°C(TJ)	-55°C ~ 150°C (TJ)	-55°C~150°C(TJ)

Request a quote on any onsemi FDMS Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

Frequently asked questions

How do the onsemi onsemi FDMS Series variants differ?: onsemi FDMS Series part numbers differ by package, case, current - continuous drain (Id) @ 25°C and drain to source voltage. Use the selection guide above to pick by package.
How many onsemi onsemi FDMS Series part numbers are listed?: 8 onsemi onsemi FDMS Series part numbers are listed, each with specifications and a datasheet where available.
How do I get pricing and lead time for onsemi onsemi FDMS Series?: Request a quote (RFQ) for any onsemi FDMS Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
