NXP Semiconductors PCA85176H/Q900/1,5 — Analog & Data Acquisition
NXP Semiconductors

NXP PCA85176H/Q900/1,5 LCD Driver IC, 40 Segment, I²C

MPNPCA85176H/Q900/1,5
End of Life

NXP PCA85176H/Q900/1,5 LCD segment driver IC, I²C interface, 40 segment output, 1.8V-5.5V supply, 64-TQFP package, ROHS3 compliant.

$2.98Ref. price · indicative, final on quote
PCA85176H/Q900/1,5 datasheet

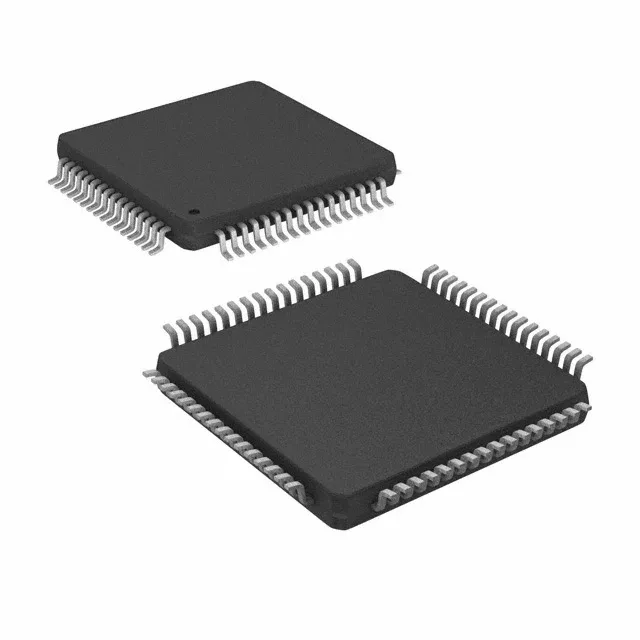

Packaging64-TQFP
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

PCA85176H/Q900/1,5 Technical Specifications
ParameterValue
Display typeLCD
Mounting typeSurface Mount
Voltage1.8V ~ 5.5V
Current - supply3.5 µA
InterfaceI²C
Operating temperature-40°C ~ 95°C
PackageTape & Reel (TR); Cut Tape (CT)
Configuration40 Segment
Case64-TQFP

Product details

LCD segment driver — 40 outputs, I²C control

The PCA85176H/Q900/1,5 from NXP is a 40-segment LCD driver IC that communicates over an I²C bus, making it a straightforward add-on for any MCU with a spare I²C port. The 40 segment outputs drive up to 40 LCD elements directly — enough for a 7-digit numeric display with decimal points and annunciators, or a custom icon-based panel. Quiescent current is 3.5 µA typical — low enough that the driver can stay powered in a battery-backed system without draining the coin cell.

Active production and compliance

ROHS3 compliant, so it ships lead-free and meets the current EU restriction directive without exemption declarations.
