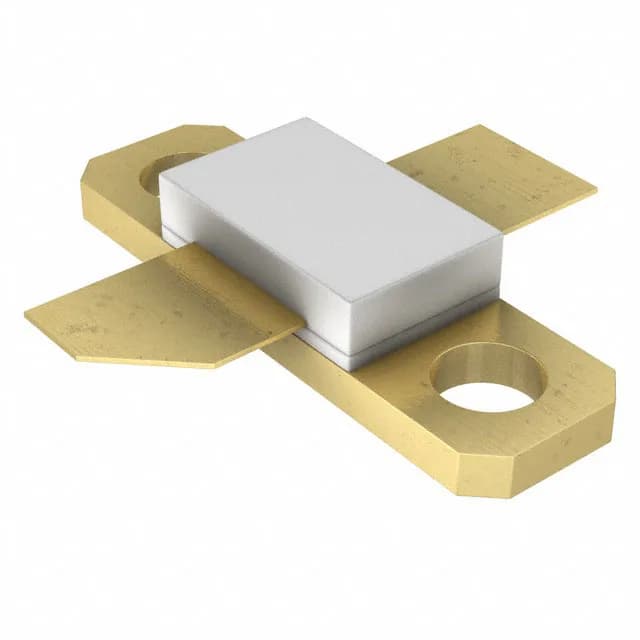

NXP Semiconductors MRFE6VS25LR5
NXP Semiconductors

MRFE6VS25LR5 RF MOSFET LDMOS, 25 W, 512 MHz, NI-360

MPNMRFE6VS25LR5
End of Life

NXP MRFE6VS25LR5 RF LDMOS transistor, 25.9 dB gain at 512 MHz, 25 W output, 50 V test, NI-360 chassis mount, active.

$77.64Ref. price · indicative, final on quote
MRFE6VS25LR5 datasheet
PackagingNI-360
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MRFE6VS25LR5 Technical Specifications
ParameterValue
Mounting typeChassis Mount
FET typeLDMOS
Voltage - test50 V
Voltage - rated133 V
Current - test10 mA
Power - output25W
Frequency512MHz
Gain25.9dB
PackageTape & Reel (TR); Cut Tape (CT)
CaseNI-360

Product details

RF power transistor for 512 MHz amplifier stages

The NXP MRFE6VS25LR5 is an LDMOS RF power transistor delivering 25 W output at 512 MHz with a gain of 25.9 dB, tested at 50 V and 10 mA. It comes in a NI-360 package for chassis-mount installation, rated to 133 V. This part is designed for base station, ISM, and broadcast transmitter final stages where linearity and efficiency at UHF frequencies are critical.

Gain and output — what they mean for the amplifier chain

At 512 MHz, 25.9 dB gain and 25 W output at 50 V test condition suit medium-power UHF amplifier stages.

Package and mounting — NI-360 chassis mount

The NI-360 flange package is designed for direct chassis or heatsink mounting via screws.

Lifecycle and compliance

It is ROHS3 compliant, so it meets current European and global restrictions on hazardous substances. For a BOM line, this means no immediate LTB risk and no compliance-driven redesign needed.

Frequently asked questions

What is the gain of MRFE6VS25LR5?

The listed gain is 25.9 dB at 512 MHz under the 50 V, 10 mA test condition. This is the small-signal gain figure used for amplifier chain budgeting.

What package does MRFE6VS25LR5 come in?

The MRFE6VS25LR5 is supplied in a NI-360 flange package for chassis-mount installation. It is also available in Tape & Reel and Cut Tape options for automated assembly.
