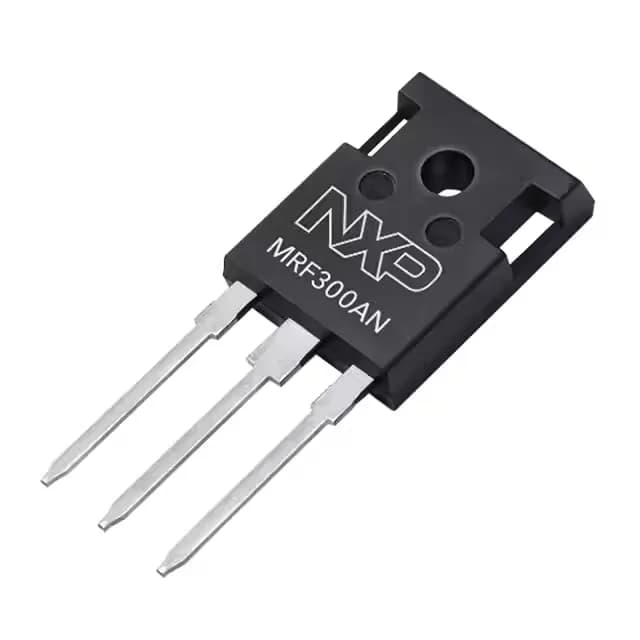

NXP MRF300AN LDMOS RF power transistor, 300W output, 27-250 MHz, 28dB gain, TO-247-3 through-hole package.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| FET type | LDMOS |
| Voltage - test | 50 V |
| Power - output | 300W |
| Frequency | 27MHz ~ 250MHz |
| Gain | 28dB |
| Package | Tube |
| Case | TO-247-3 |
The NXP MRF300AN is an LDMOS RF power transistor delivering 300 W output across 27 MHz to 250 MHz, with a typical gain of 28 dB at 50 V test voltage. This is a current-production, ROHS3-compliant device, still actively manufactured.
The MRF300AN covers 27 MHz to 250 MHz and delivers 300 W output at 50 V test voltage, with a typical gain of 28 dB.
Yes, at 300 W output the device dissipates significant heat. The TO-247 package tab must be mounted to a heatsink with good thermal interface — plan for a substantial thermal solution in your BOM.
