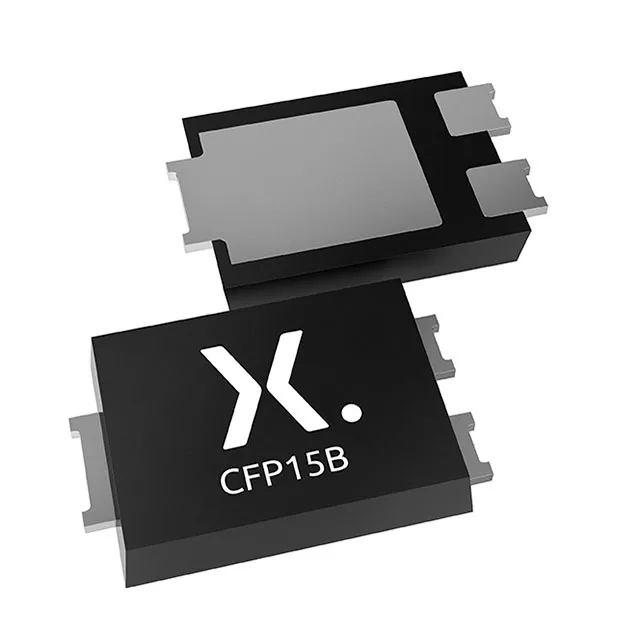

PMEG030V030EPE-QZ
Nexperia USA Inc.
Tape & Reel (TR); Cut Tape (CT)Fast Recovery =< 500ns, > 200mA (Io)Automotive, AEC-Q101
Ref. price$0.5600
Lead time on requestGet quote ›
Nexperia USA Inc. PMEG Series
174 variants · Nexperia USA Inc.
About the Nexperia USA Inc. Nexperia USA Inc. PMEG Series series
The Nexperia USA Inc. Nexperia USA Inc. PMEG Series series groups 174 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Variants differ by package, capacitance @ vr, f and current - average rectified, so you can match the exact package your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Nexperia USA Inc. PMEG Series variants and discontinued ones from a single page.
Select a variant by
- Package
- Bulk · Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Capacitance @ vr, f
- 370pF @ 1V, 1MHz · 395pF @ 1V, 1MHz · 470pF @ 1V, 1MHz · 495pF @ 1V, 1MHz · 830pF @ 1V, 1MHz · 1400pF @ 1V, 1MHz
- Current - average rectified
- 3A · 4.2A · 5A · 14A
- Current - reverse leakage @ vr
- 44 µA @ 45 V · 80 µA @ 45 V · 120 µA @ 40 V · 150 µA @ 30 V
- Operating temperature - junction
- 175°C · 175°C (Max) · 175°C(Max)
- Reverse recovery time
- 12 ns · 13 ns · 16 ns · 24 ns · 40 ns
- Voltage - DC reverse (Vr)
- 30 V · 40 V · 45 V
Variant comparison
| Parameter | PMEG030V030EPE-QZ | PMEG030V030EPEZ | PMEG030V050EPDZ | PMEG030V050EPEZ | PMEG040V030EPE-QZ | PMEG040V030EPEZ |
|---|---|---|---|---|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) |
| Capacitance @ vr, f | 470pF @ 1V, 1MHz | 470pF @ 1V, 1MHz | 495pF @ 1V, 1MHz | 470pF @ 1V, 1MHz | 370pF @ 1V, 1MHz | 370pF @ 1V, 1MHz |
| Current - average rectified | 4.2A | 3A | 5A | 5A | 3A | 3A |
| Current - reverse leakage @ vr | 150 µA @ 30 V | 150 µA @ 30 V | 150 µA @ 30 V | 150 µA @ 30 V | 120 µA @ 40 V | 120 µA @ 40 V |
| Operating temperature - junction | 175°C | 175°C | 175°C(Max) | 175°C | 175°C | 175°C |
| Reverse recovery time | 16 ns | 16 ns | 16 ns | 16 ns | 12 ns | 12 ns |
| Voltage - DC reverse (Vr) | 30 V | 30 V | 30 V | 30 V | 40 V | 40 V |
Request a quote on any Nexperia USA Inc. PMEG Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Nexperia USA Inc. Nexperia USA Inc. PMEG Series variants differ?
- Nexperia USA Inc. PMEG Series part numbers differ by package, capacitance @ vr, f, current - average rectified and current - reverse leakage @ vr. Use the selection guide above to pick by package.
- How many Nexperia USA Inc. Nexperia USA Inc. PMEG Series part numbers are listed?
- 174 Nexperia USA Inc. Nexperia USA Inc. PMEG Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Nexperia USA Inc. Nexperia USA Inc. PMEG Series?
- Request a quote (RFQ) for any Nexperia USA Inc. PMEG Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
