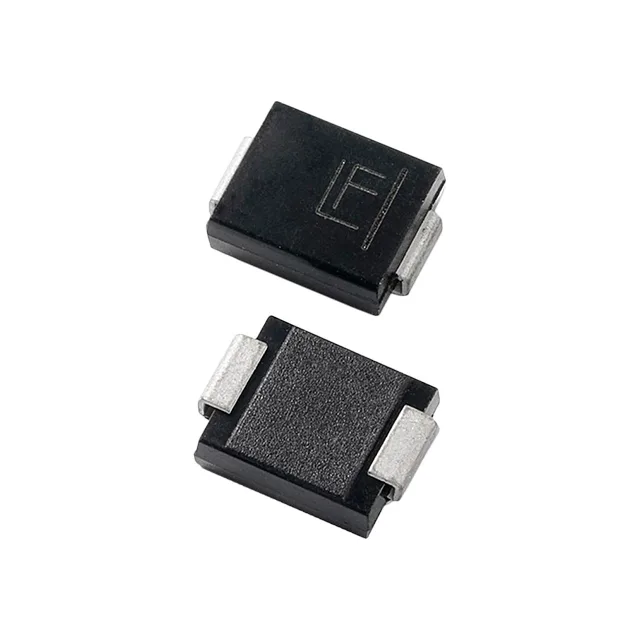

Littelfuse Inc. SMDJ51A-HR
MPNSMDJ51A-HR
Active
$27.5600Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Zener |
| Series | SMDJ-HR |
| Mounting | Surface Mount |
| Voltage - breakdown | 56.7V |
| Voltage - clamping (Max) @ ipp | 82.4V |
| Voltage - reverse standoff | 51V |
| Current - peak pulse (10/1000μs) | 36.4A |
| Power - peak pulse | 3000W (3kW) |
| Power line protection | No |
| Operating temperature | -65°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Applications | General Purpose |
| Case | DO-214AB, SMC |
| Unidirectional channels | 1 |
