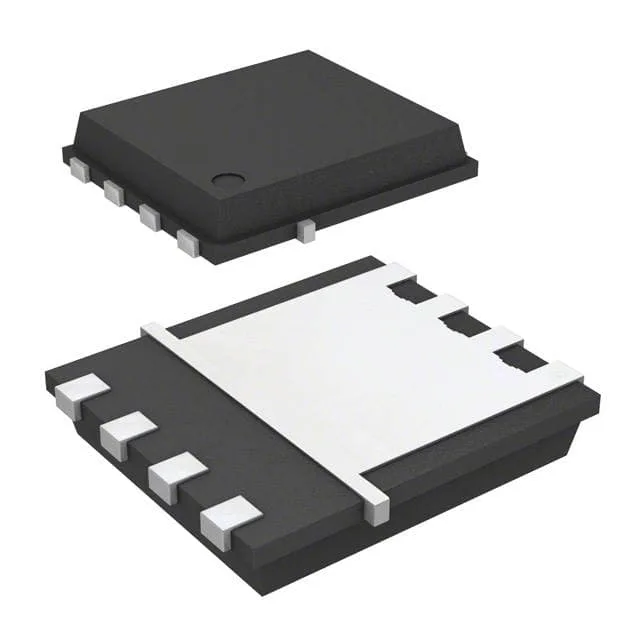

IRFHM3911TRPBF - Infineon Technologies
MPNIRFHM3911TRPBF
End of Life
MOSFET N-CH 100V 3.2A/20A 8PQFN
$0.8Ref. price · indicative, final on quote
Packaging8-PowerTDFN
RoHSROHS3 Compliant
SeriesHEXFET®
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HEXFET® |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 100 V |
| Drive voltage (Max rds on, min rds on) | 10V |
| Current - continuous drain (Id) @ 25°C | 3.2A (Ta), 20A (Tc) |
| Power dissipation | 2.8W (Ta), 29W (Tc) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerTDFN |
| Vgs(th) (Max) @ id | 4V @ 35µA |
| Rds on (Max) @ id, vgs | 115mOhm @ 6.3A, 10V |
| Gate charge (Qg) (Max) @ vgs | 26 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 760 pF @ 50 V |
