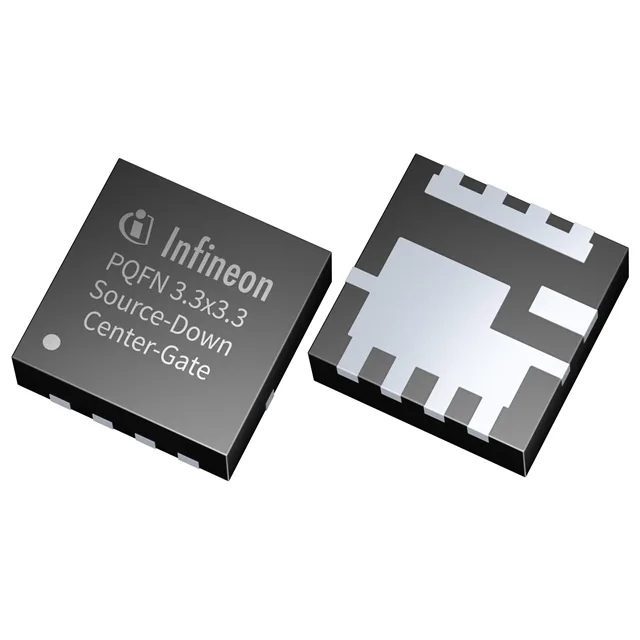

Infineon Technologies IQE030N06NM5CGATMA1
MPNIQE030N06NM5CGATMA1
End of Life
TRENCH 40<-<100V PG-TTFN-9
$3.52092Price · pay online now
$3.52 / ea
3 in stock — maximum per order · 3–4 days lead time
Packaging8-PowerTDFN
RoHSROHS3 Compliant
SeriesOptiMOS™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OptiMOS™ |
| FET type | N-Channel |
| Mounting | Surface Mount, Wettable Flank |
| Drain to source voltage | 60 V |
| Drive voltage (Max rds on, min rds on) | 6V, 10V |
| Current - continuous drain (Id) @ 25°C | 21A (Ta), 137A (Tc) |
| Power dissipation | 2.5W (Ta), 107W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerTDFN |
| Vgs(th) (Max) @ id | 3.3V @ 50µA |
| Rds on (Max) @ id, vgs | 3mOhm @ 20A, 10V |
| Gate charge (Qg) (Max) @ vgs | 49 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 3800 pF @ 30 V |
