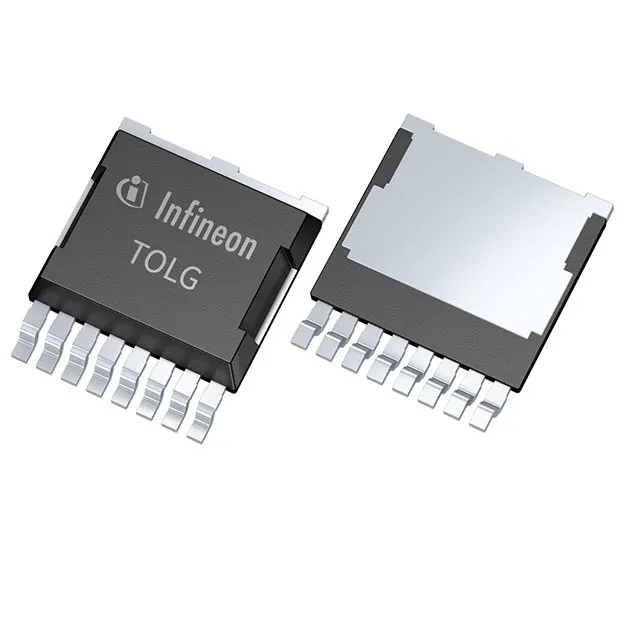

Infineon Technologies IPTG063N15NM5ATMA1
MPNIPTG063N15NM5ATMA1
End of Life
TRENCH >=100V
$6.67728Price · pay online now
$6.68 / ea
2 in stock — maximum per order · 3–4 days lead time
Packaging8-PowerSMD, Gull Wing
RoHSROHS3 Compliant
SeriesOptiMOS™ 5
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OptiMOS™ 5 |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 150 V |
| Drive voltage (Max rds on, min rds on) | 8V, 10V |
| Current - continuous drain (Id) @ 25°C | 16.2A (Ta), 122A (Tc) |
| Power dissipation | 3.8W (Ta), 214W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerSMD, Gull Wing |
| Vgs(th) (Max) @ id | 4.6V @ 163µA |
| Rds on (Max) @ id, vgs | 6.3mOhm @ 50A, 10V |
| Gate charge (Qg) (Max) @ vgs | 63 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 4800 pF @ 75 V |
