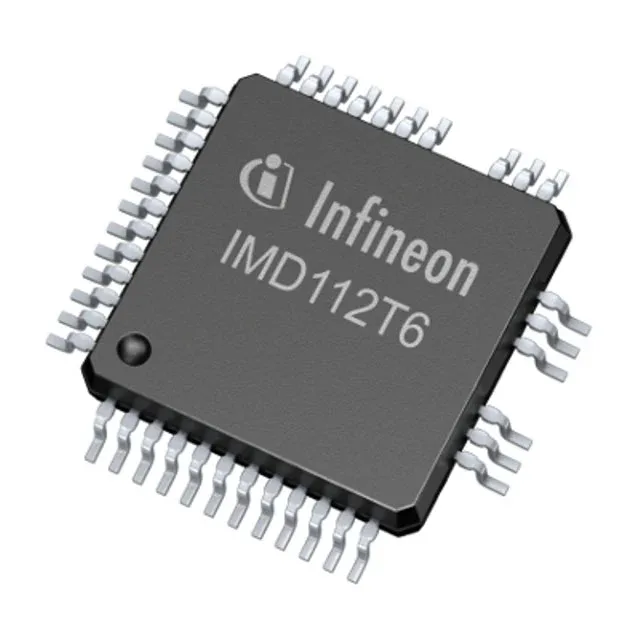

Active iMOTION™ motor controller in LQFP-40
The Infineon IMD112T6F040XUMA1 is an active-production iMOTION™ series motor controller that integrates a speed-control engine with a half-bridge (3) gate-drive output stage, targeting AC synchronous and multiphase stepper motor applications.
Interface and control
Communication with a host MCU runs over a Serial UART interface — the controller handles the speed loop internally, so the host only sends target speed and receives status, offloading the real-time control from the main processor. The half-bridge (3) output configuration drives the three phases of a BLDC or PMSM motor directly through external IGBTs or MOSFETs; the internal gate-drive logic includes shoot-through protection and dead-time insertion.
Compliance and procurement posture
Marked as Active in production and ROHS3 compliant, the IMD112T6F040XUMA1 is available for new designs and volume BOMs without last-time-buy risk.
