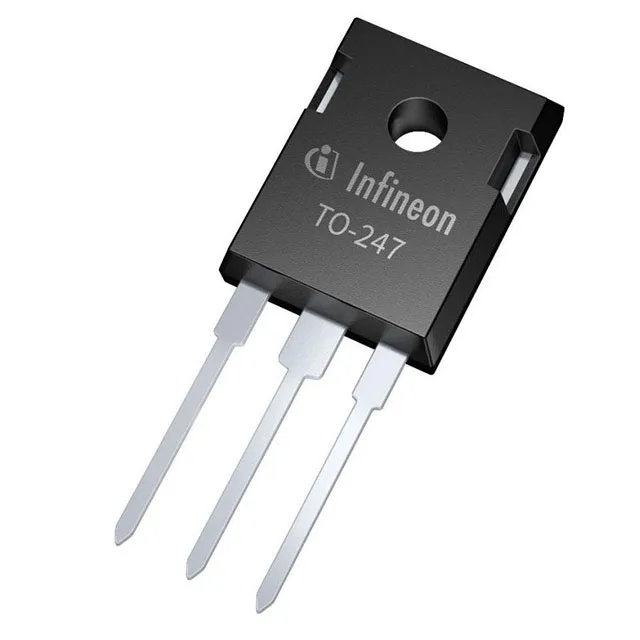

Infineon Technologies IKW40N120CH7XKSA1
MPNIKW40N120CH7XKSA1
End of Life
INDUSTRY 14
$5.77956Price · pay online now
$5.78 / ea
3 in stock — maximum per order · 3–4 days lead time
PackagingTO-247-3
RoHSROHS3 Compliant
SeriesTRENCHSTOP™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TRENCHSTOP™ |
| IGBT type | Trench Field Stop |
| Input type | Standard |
| Mounting | Through Hole |
| Voltage - collector emitter breakdown | 1200 V |
| Current - collector (Ic) | 82 A |
| Current - collector pulsed | 160 A |
| Power - max | 330 W |
| Operating temperature | -40°C ~ 175°C (TJ) |
| Package | Tube |
| Gate charge | 290 nC |
| Case | TO-247-3 |
| Switching energy | 1.69mJ (on), 920µJ (off) |
| Td (on/off) @ 25°C | 36ns/336ns |
| Vce(on) (Max) @ vge, ic | 2.15V @ 15V, 40A |
| Reverse recovery time | 120 ns |
