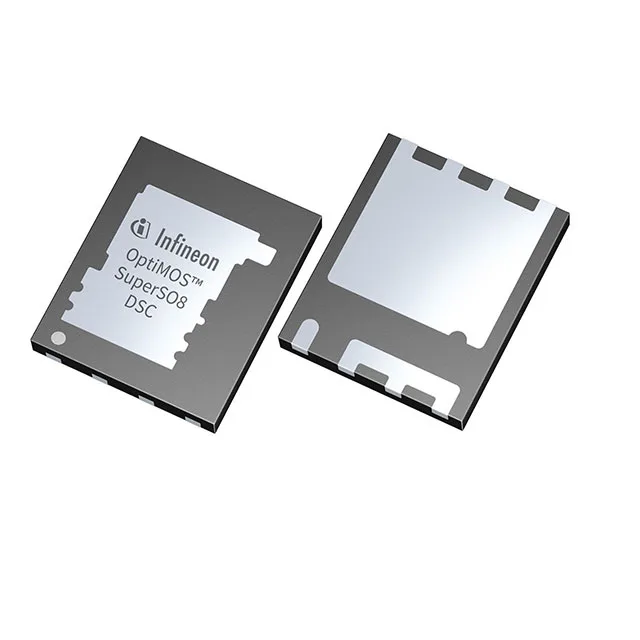

Infineon Technologies BSC009N04LSSCATMA1
MPNBSC009N04LSSCATMA1
End of Life
TRENCH <= 40V
$5.34576Price · pay online now
Packaging8-PowerWDFN
RoHSROHS3 Compliant
SeriesOptiMOS™
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | OptiMOS™ |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 40 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 301A (Tc) |
| Power dissipation | 167W (Tc) |
| Operating temperature | -55°C ~ 175°C (TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerWDFN |
| Vgs(th) (Max) @ id | 2V @ 250µA |
| Rds on (Max) @ id, vgs | 1.24mOhm @ 50A, 10V |
| Gate charge (Qg) (Max) @ vgs | 133 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 9520 pF @ 20 V |
