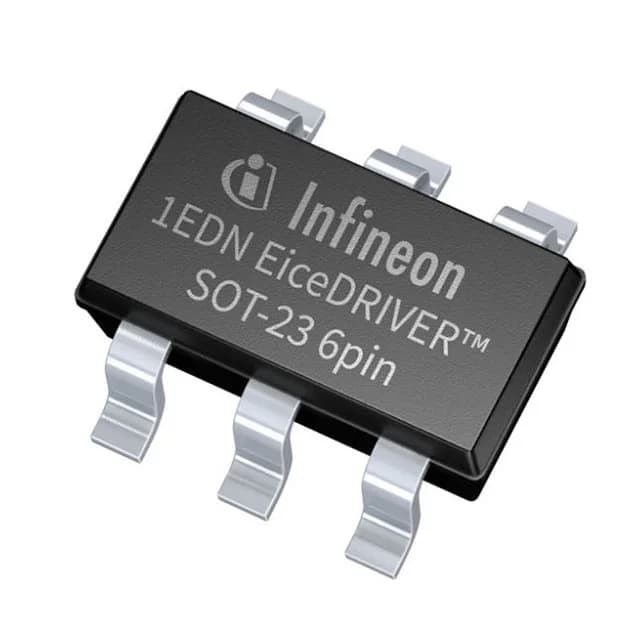

Infineon 1EDN7511BXUSA1 EiceDriver™ Low-Side Gate Driver

MPN1EDN7511BXUSA1
End of Life

Infineon EiceDriver™ series, 1EDN7511BXUSA1 low-side gate driver, single channel, 4A source / 8A sink peak output, 4.5V–20V supply, SOT-23-6 package, -40°C to 150°C junction temperature.

$0.94Ref. price · indicative, final on quote
1EDN7511BXUSA1 datasheet
PackagingSOT-23-6
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

1EDN7511BXUSA1 Technical Specifications
ParameterValue
SeriesEiceDriver™
Gate typeN-Channel, P-Channel MOSFET
Input typeInverting, Non-Inverting
Channel typeSingle
Mounting typeSurface Mount
Voltage4.5V ~ 20V
Logic voltage - VIL, VIH1.2V, 1.9V
Current - peak output (Source, sink)4A, 8A
Operating temperature-40°C ~ 150°C (TJ)
PackageTape & Reel (TR); Cut Tape (CT)
CaseSOT-23-6
Number of drivers1
Driven configurationLow-Side
Rise (Fall time)6.5ns, 4.5ns

Product details

Low-side gate driver with 4A/8A peak drive in a SOT-23-6 footprint

The Infineon 1EDN7511BXUSA1 is a single-channel low-side gate driver from the EiceDriver™ family, designed to drive both N-channel and P-channel MOSFETs. It accepts inverting or non-inverting input logic. The part is rated for junction temperatures from -40°C to 150°C, suiting it for automotive under-hood and industrial environments where ambient heat is a constraint. It comes in a SOT-23-6 package (PG-SOT23-6-2 land pattern), which conserves board space in dense power-stage layouts.

Peak current and gate-drive capability

The 4 A source / 8 A sink peak rating is the key selection number. It tells you how much gate charge the driver can push and pull per switching cycle.

Mounting and packaging details

Surface-mount SOT-23-6, supplier package PG-SOT23-6-2. Available in Tape & Reel or Cut Tape options for prototyping or production reels.

Frequently asked questions

What is the exact peak source and sink current for 1EDN7511BXUSA1?

Peak output current is 4 A source and 8 A sink.

Is 1EDN7511BXUSA1 suitable for driving both N-channel and P-channel MOSFETs?

Yes, the gate type is specified for both N-Channel and P-Channel MOSFETs.
