EPC EPC20 Series

34 variants · EPC

About the EPC EPC EPC20 Series series

The EPC EPC EPC20 Series series groups 34 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common case of Die, drive voltage (Max rds on, min rds on) of 5V and FET type of N-Channel. Variants differ by current - continuous drain (Id) @ 25°C, drain to source voltage and gate charge (Qg) (Max) @ vgs, so you can match the exact current - continuous drain (Id) @ 25°C your application requires using the selection guide below.

Select a variant by

Current - continuous drain (Id) @ 25°C: 1.7A (Ta) · 6A (Ta) · 8.2A (Ta) · 10A (Ta) · 18A (Ta) · 500mA (Ta)
Drain to source voltage: 40 V · 100 V
Gate charge (Qg) (Max) @ vgs: 0.044 nC @ 5 V · 0.12 nC @ 5 V · 0.91 nC @ 5 V · 2.1 nC @ 5 V · 2.2 nC @ 5 V · 2.5 nC @ 5 V · 4.5 nC @ 5 V
Input capacitance (Ciss) (Max) @ vds: 8.4 pF @ 50 V · 14 pF @ 50 V · 90 pF @ 50 V · 220 pF @ 50 V · 258 pF @ 50 V · 300 pF @ 20 V · 420 pF @ 50 V · 575 pF @ 50 V
Rds on (Max) @ id, vgs: 3.3Ohm @ 50mA, 5V · 13.5mOhm @ 11A, 5V · 16mOhm @ 10A, 5V · 16mOhm @ 11A, 5V · 25mOhm @ 3A, 5V · 30mOhm @ 6A, 5V · 65mOhm @ 1A, 5V · 550mOhm @ 100mA, 5V
Vgs(th) (Max) @ id: 2.5V @ 1.2mA · 2.5V @ 1.5mA · 2.5V @ 2mA · 2.5V @ 3mA · 2.5V @ 20µA · 2.5V @ 80µA · 2.5V @ 600µA

Variant comparison

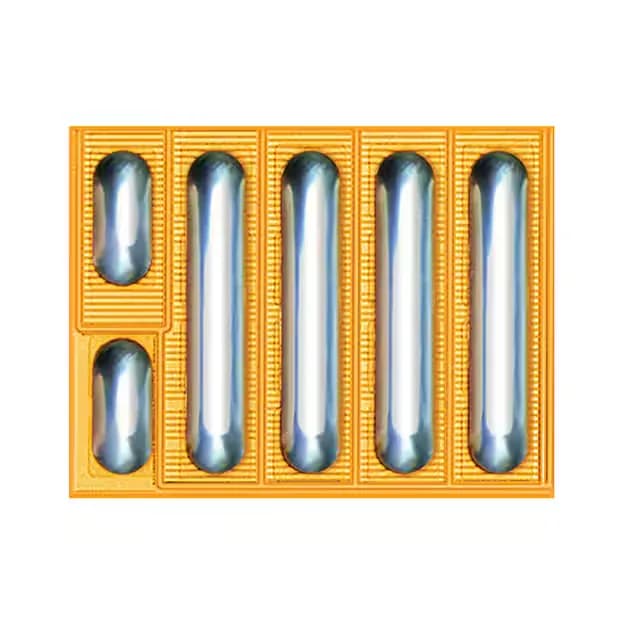

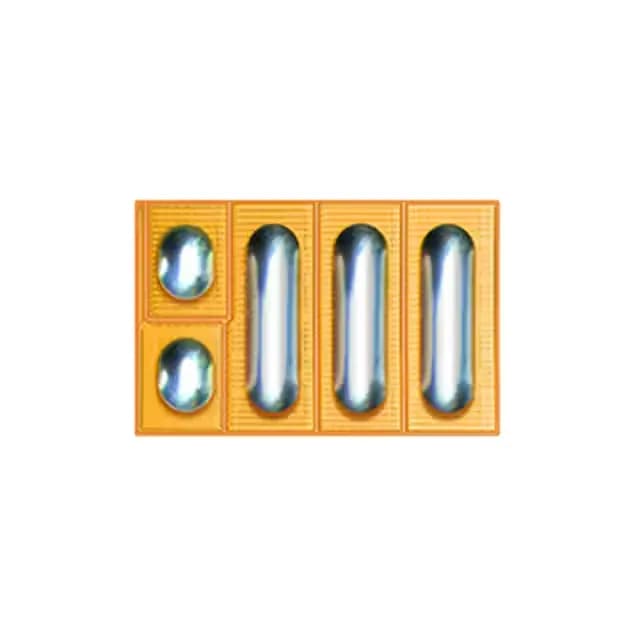

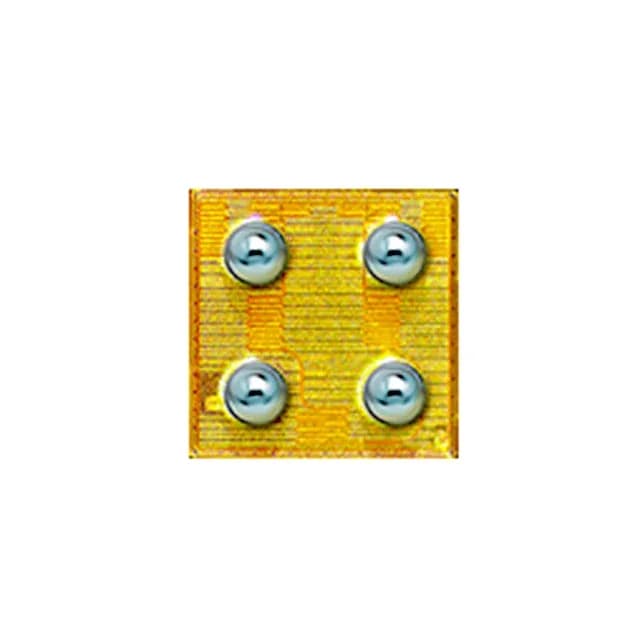

Parameter	EPC2007C	EPC2014C	EPC2016C	EPC2036	EPC2037	EPC2038
Current - continuous drain (Id) @ 25°C	6A (Ta)	10A (Ta)	18A (Ta)	1.7A (Ta)	1.7A (Ta)	500mA (Ta)
Drain to source voltage	100 V	40 V	100 V	100 V	100 V	100 V
Gate charge (Qg) (Max) @ vgs	2.2 nC @ 5 V	2.5 nC @ 5 V	4.5 nC @ 5 V	0.91 nC @ 5 V	0.12 nC @ 5 V	0.044 nC @ 5 V
Input capacitance (Ciss) (Max) @ vds	220 pF @ 50 V	300 pF @ 20 V	420 pF @ 50 V	90 pF @ 50 V	14 pF @ 50 V	8.4 pF @ 50 V
Rds on (Max) @ id, vgs	30mOhm @ 6A, 5V	16mOhm @ 10A, 5V	16mOhm @ 11A, 5V	65mOhm @ 1A, 5V	550mOhm @ 100mA, 5V	3.3Ohm @ 50mA, 5V
Vgs(th) (Max) @ id	2.5V @ 1.2mA	2.5V @ 2mA	2.5V @ 3mA	2.5V @ 600µA	2.5V @ 80µA	2.5V @ 20µA

Shared specifications

Case: Die
Drive voltage (Max rds on, min rds on): 5V
FET type: N-Channel
Mounting type: Surface Mount
Operating temperature: -40°C ~ 150°C (TJ)
Package: Tape & Reel (TR); Cut Tape (CT)
Technology: GaNFET (Gallium Nitride)
Vgs: +6V, -4V
