Diodes Incorporated DMN2 Series

5 variants · Diodes Incorporated

About the Diodes Incorporated Diodes Incorporated DMN2 Series series

The Diodes Incorporated Diodes Incorporated DMN2 Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common drain to source voltage of 20V, mounting type of Surface Mount and vgs(th) (Max) @ id of 1V @ 250µA. Variants differ by case, current - continuous drain (Id) @ 25°C and FET feature, so you can match the exact case your application requires using the selection guide below. All listed Diodes Incorporated DMN2 Series part numbers are active and orderable.

Select a variant by

Case: 4-VFDFN Exposed Pad · 6-SMD, No Lead · 6-TSSOP, SC-88, SOT-363 · 6-UDFN Exposed Pad · SOT-23-6
Current - continuous drain (Id) @ 25°C: 3.3A · 12.2A (Ta) · 450mA (Ta) · 540mA
FET feature: - · Logic Level Gate · Standard
Gate charge (Qg) (Max) @ vgs: - · 12nC @ 10V · 56nC @ 10V · 350pC @ 4.5V
Input capacitance (Ciss) (Max) @ vds: 21.5pF @ 16V · 150pF @ 16V · 389pF @ 10V · 2248pF @ 10V
Operating temperature: -65°C ~ 150°C (TJ) · -65°C~150°C(TJ) · -55°C ~ 150°C (TJ) · -55°C~150°C(TJ)
Package: Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
Power - max: 2.1W · 200mW · 225mW · 310mW (Ta) · 730mW

Variant comparison

Parameter	DMN2004DMK-7	DMN2004DWK-7	DMN2011UFX-7	DMN2050LFDB-13	DMN2991UDA-7B

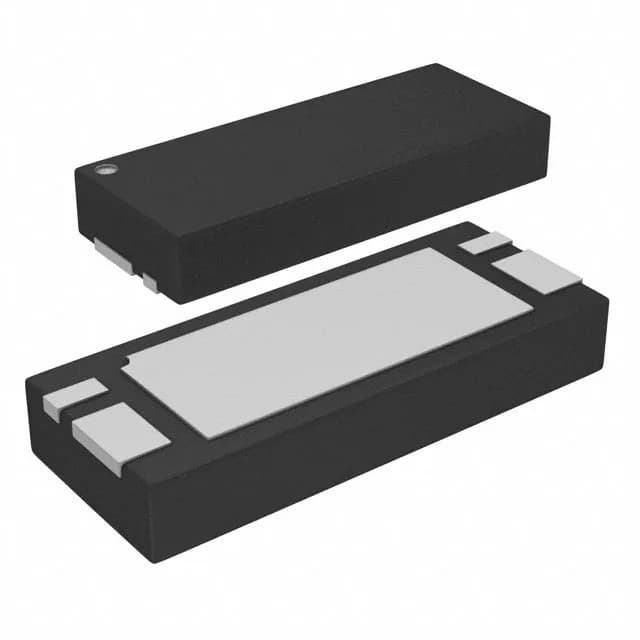

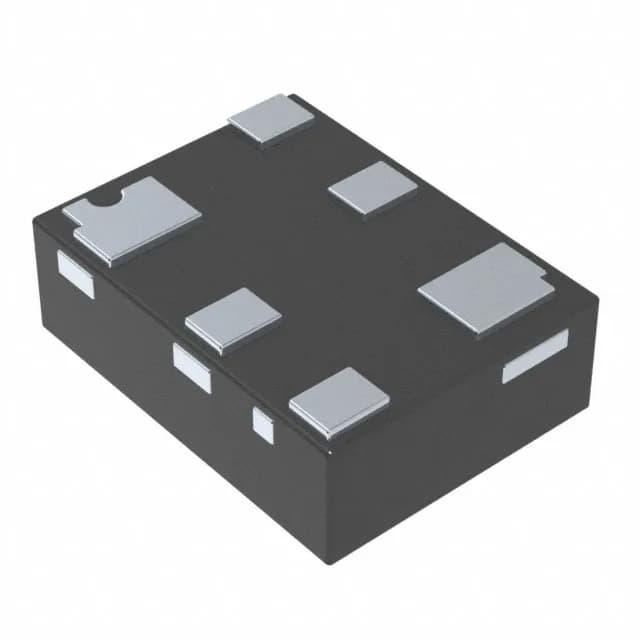

Case	SOT-23-6	6-TSSOP, SC-88, SOT-363	4-VFDFN Exposed Pad	6-UDFN Exposed Pad	6-SMD, No Lead
Current - continuous drain (Id) @ 25°C	540mA	540mA	12.2A (Ta)	3.3A	450mA (Ta)
FET feature	Logic Level Gate	Logic Level Gate	-	Logic Level Gate	Standard
Gate charge (Qg) (Max) @ vgs	-	-	56nC @ 10V	12nC @ 10V	350pC @ 4.5V
Input capacitance (Ciss) (Max) @ vds	150pF @ 16V	150pF @ 16V	2248pF @ 10V	389pF @ 10V	21.5pF @ 16V
Operating temperature	-65°C ~ 150°C (TJ)	-65°C~150°C(TJ)	-55°C ~ 150°C (TJ)	-55°C ~ 150°C (TJ)	-55°C~150°C(TJ)
Package	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR) Cut Tape (CT)	Tape & Reel (TR); Cut Tape (CT)
Power - max	225mW	200mW	2.1W	730mW	310mW (Ta)

Shared specifications

Drain to source voltage: 20V
Mounting type: Surface Mount
Vgs(th) (Max) @ id: 1V @ 250µA
