Diodes Incorporated DMP3130LQ-7
MPNDMP3130LQ-7
Active
MOSFET P-CH 30V 3.5A SOT23
$0.4600Ref. price · indicative, final on quote
PackagingTO-236-3, SC-59, SOT-23-3
RoHSROHS3 Compliant
SeriesAutomotive, AEC-Q101
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | P-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 30 V |
| Drive voltage (Max rds on, min rds on) | 2.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 3.5A (Ta) |
| Power dissipation | 700mW (Ta) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Grade | Automotive |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Vgs | ±12V |
| Technology | MOSFET (Metal Oxide) |
| Qualification | AEC-Q101 |

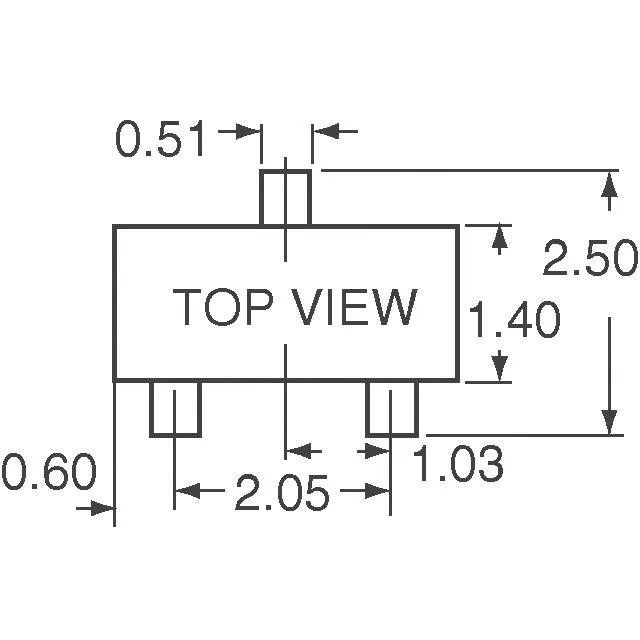

| Case | TO-236-3, SC-59, SOT-23-3 |
| Vgs(th) (Max) @ id | 1.3V @ 250µA |
| Rds on (Max) @ id, vgs | 77mOhm @ 4.2A, 10V |
| Gate charge (Qg) (Max) @ vgs | 24 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 864 pF @ 15 V |
