Diodes Incorporated DMP2100UFU-13
MPNDMP2100UFU-13
Active
$0.1588Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | 2 P-Channel (Dual) |
| Mounting | Surface Mount |
| Drain to source voltage | 20V |
| Current - continuous drain (Id) @ 25°C | 5.7A |
| Power - max | 900mW |
| Operating temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| FET feature | Standard |

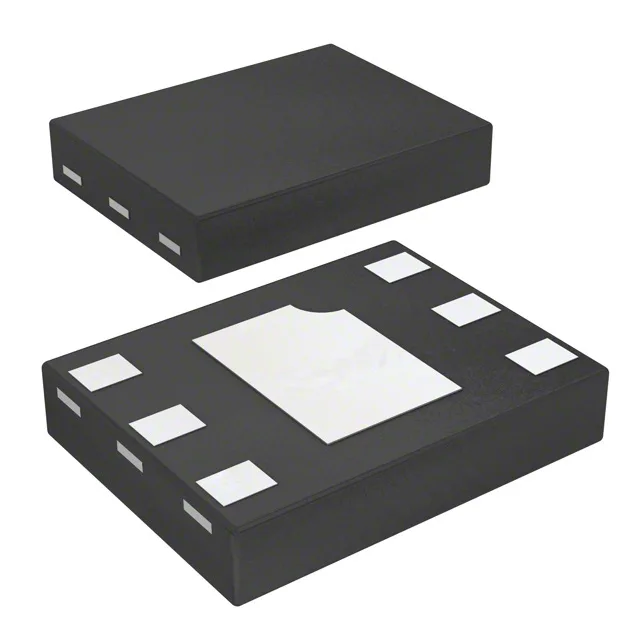

| Case | 6-UDFN Exposed Pad |
| Vgs(th) (Max) @ id | 1.4V @ 250µA |
| Rds on (Max) @ id, vgs | 38mOhm @ 3.5A, 10V |
| Gate charge (Qg) (Max) @ vgs | 21.4nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 906pF @ 10V |
