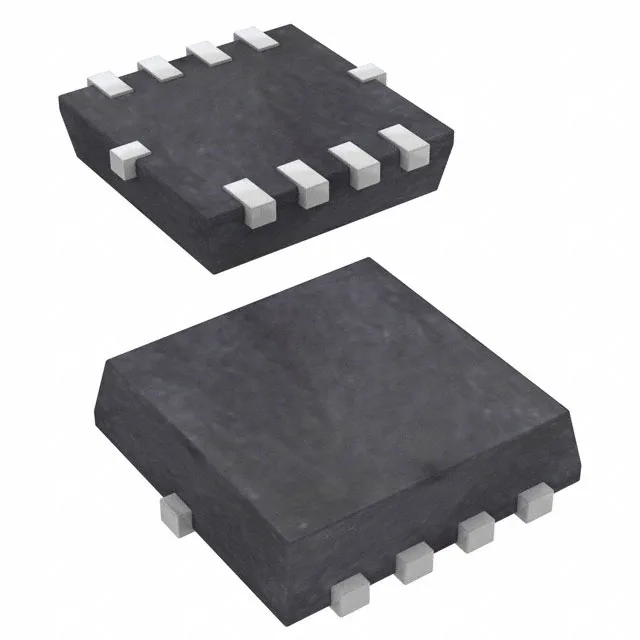

Diodes Incorporated DMP2040UND-7
MPNDMP2040UND-7
Active
$0.1917Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Drain to source voltage | 20V |
| Current - continuous drain (Id) @ 25°C | 5.3A (Ta), 13.6A (Tc) |
| Power - max | 900mW (Ta) |
| Operating temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| Case | 8-PowerVDFN |
| Vgs(th) (Max) @ id | 1.5V @ 250µA |
| Rds on (Max) @ id, vgs | 36mOhm @ 8.9A, 4.5V |
| Gate charge (Qg) (Max) @ vgs | 20nC @ 10V |
| Input capacitance (Ciss) (Max) @ vds | 834pF @ 10V |
