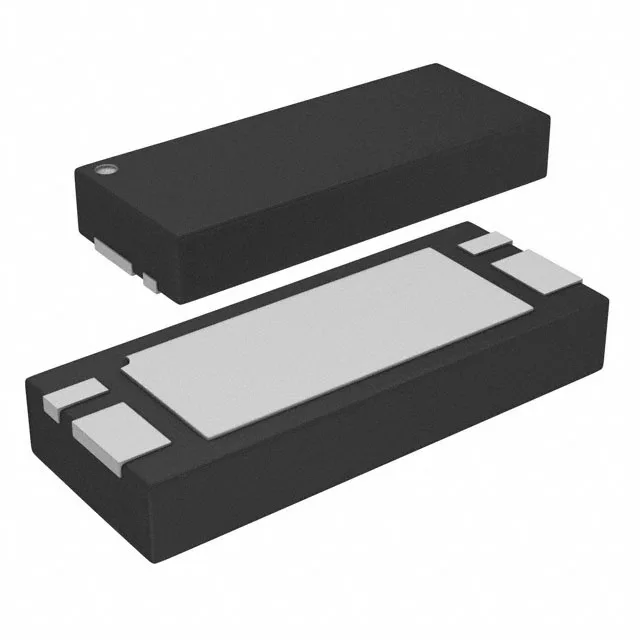

Diodes Incorporated DMN2016UFX-7
MPNDMN2016UFX-7
Active
$0.2707Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| FET type | 2 N-Channel (Dual) |
| Mounting | Surface Mount |
| Drain to source voltage | 24V |
| Current - continuous drain (Id) @ 25°C | 9.9A (Ta) |
| Power - max | 1.07W (Ta) |
| Operating temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR) |
| FET feature | Standard |
| Case | 4-VFDFN Exposed Pad |
| Vgs(th) (Max) @ id | 1.5V @ 250µA |
| Rds on (Max) @ id, vgs | 15mOhm @ 6.5A, 4.5V |
| Gate charge (Qg) (Max) @ vgs | 14nC @ 4.5V |
| Input capacitance (Ciss) (Max) @ vds | 950pF @ 10V |
