SRP6530A-100M
Bourns Inc.
10 µHTape & Reel (TR); Cut Tape (CT)-55°C~155°C
Ref. price$1.2500
Lead time on requestGet quote

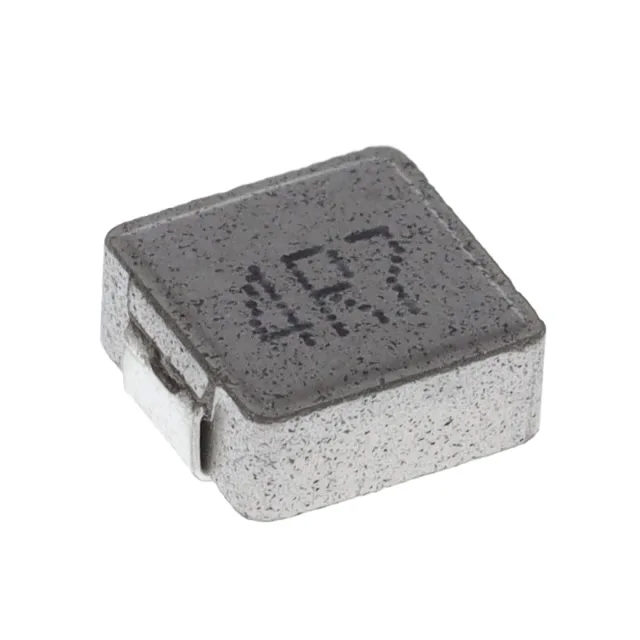

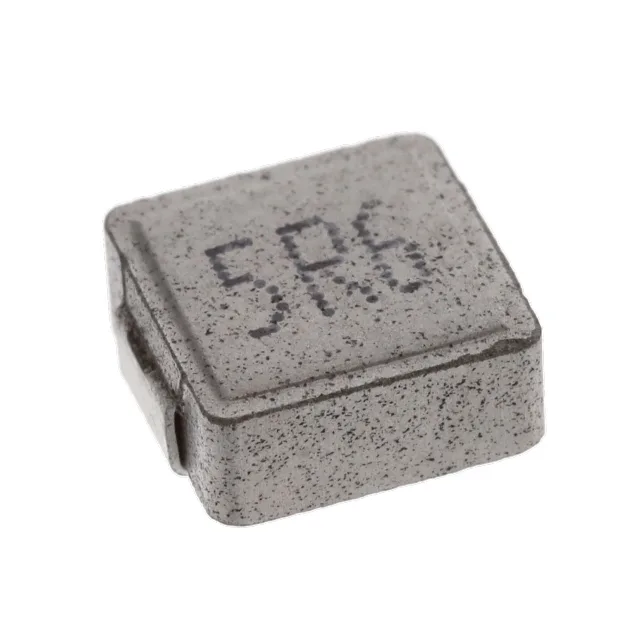

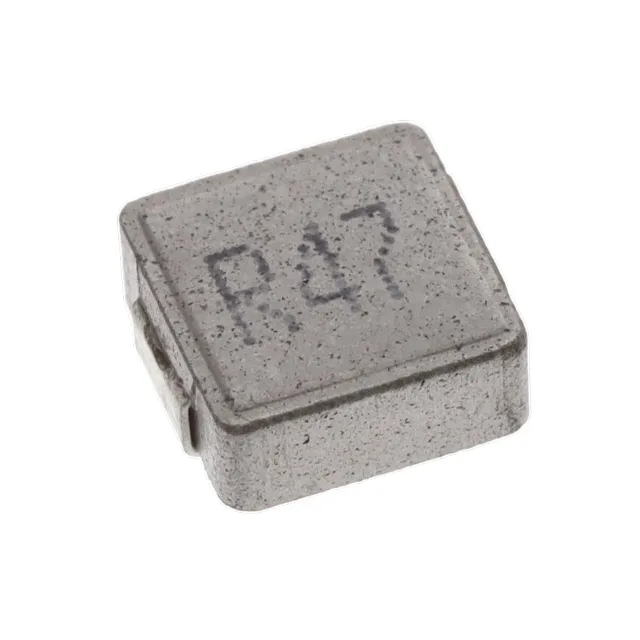

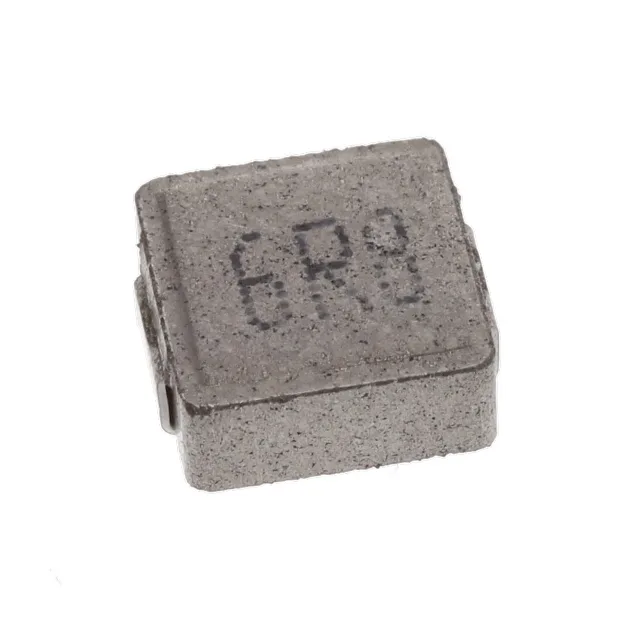

Bourns Inc. SRP6530A Series
16 variants · Bourns Inc.
About the Bourns Inc. SRP6530A Series
The Bourns Inc. SRP6530A Series series groups 16 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common case of Nonstandard, features of - and height - seated of 0.118\" (3.00mm). Variants differ by current - saturation, current rating and DC resistance, so you can match the exact current - saturation your application requires using the selection guide below. All listed Bourns Inc. SRP6530A Series part numbers are active and orderable.
Select a variant by
- Current - saturation
- 7A · 7.5A · 9A · 10.5A · 11A · 13.5A · 14A · 18A · 25A · 35A · 50A · 70A
- Current rating
- 4 A · 5 A · 5.5 A · 5.8 A · 6 A · 8 A · 10 A · 12 A · 21.5 A · 25.5 A · 34 A
- DC resistance
- 1.7mOhm Max · 2.8mOhm Max · 3.9mOhm Max · 10mOhm Max · 15mOhm Max · 20mOhm Max · 30mOhm Max · 40mOhm Max · 60mOhm Max · 68mOhm Max · 105mOhm Max
- Frequency - self resonant
- 10MHz · 12MHz · 17MHz · 20MHz · 22MHz · 25MHz · 30MHz · 45MHz · 58MHz · 140MHz · 145MHz · 200MHz
- Inductance
- 1 µH · 1.5 µH · 2.2 µH · 3.3 µH · 4.7 µH · 5.6 µH · 6.8 µH · 8.2 µH · 10 µH · 100 nH · 220 nH · 330 nH
- Operating temperature
- -55°C ~ 155°C · -55°C~155°C
- Package
- Tape & Reel (TR) Cut Tape (CT) · Tape & Reel (TR); Cut Tape (CT)
- Q @ freq
- 12 @ 25.2MHz · 14 @ 25.2MHz · 21 @ 7.96MHz · 24 @ 7.96MHz · 26 @ 2.52MHz · 30 @ 7.96MHz
Shared specifications
- Case
- Nonstandard
- Features
- -
- Height - seated
- 0.118\" (3.00mm)
- Inductance frequency - test
- 500 kHz
- Material - core
- Metal Composite
- Mounting
- Surface Mount
- Ratings
- AEC-Q200
- Shielding
- Shielded
- Size (Dimension)
- 0.280\" L x 0.260\" W (7.10mm x 6.60mm)
- Tolerance
- ±20%
- Type
- -
Variant comparison
| Parameter | SRP6530A-100M | SRP6530A-1R0M | SRP6530A-1R5M | SRP6530A-2R2M | SRP6530A-3R3M | SRP6530A-4R7M |
|---|---|---|---|---|---|---|
| Current - saturation | 7A | 25A | 18A | 14A | 13.5A | 11A |
| Current rating | 4 A | 12 A | 10 A | 10 A | 8 A | 6 A |
| DC resistance | 105mOhm Max | 10mOhm Max | 15mOhm Max | 20mOhm Max | 30mOhm Max | 40mOhm Max |
| Frequency - self resonant | 10MHz | 58MHz | 45MHz | 30MHz | 25MHz | 22MHz |
| Inductance | 10 µH | 1 µH | 1.5 µH | 2.2 µH | 3.3 µH | 4.7 µH |
| Operating temperature | -55°C~155°C | -55°C ~ 155°C | -55°C~155°C | -55°C~155°C | -55°C~155°C | -55°C ~ 155°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR) Cut Tape (CT) |
| Q @ freq | 26 @ 2.52MHz | 30 @ 7.96MHz | 30 @ 7.96MHz | 30 @ 7.96MHz | 24 @ 7.96MHz | 21 @ 7.96MHz |
Request a quote on any Bourns Inc. SRP6530A Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
