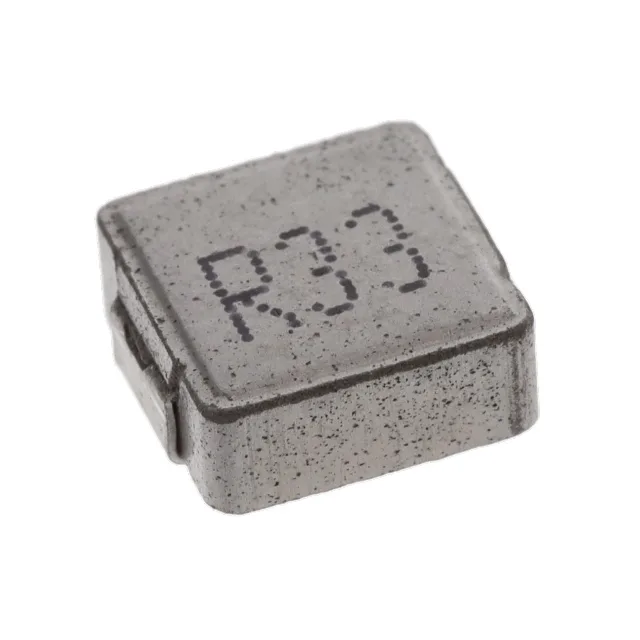

Bourns Inc. SRP6530A-R33M
MPNSRP6530A-R33M
Active
$1.1200Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SRP6530A |
| Mounting | Surface Mount |
| Current rating | 21.5 A |
| Current - saturation | 35A |
| Frequency - self resonant | 140MHz |
| Inductance frequency - test | 500 kHz |
| Operating temperature | -55°C ~ 155°C |
| Material - core | Metal Composite |
| Size (Dimension) | 0.280\" L x 0.260\" W (7.10mm x 6.60mm) |
| Height - seated | 0.118\" (3.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Ratings | AEC-Q200 |
| Q @ freq | 12 @ 25.2MHz |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 330 nH |
| Case | Nonstandard |
| DC resistance | 3.9mOhm Max |
