SSM2211CPZ-REEL7 Analog Devices Class AB Amp, 1.5W

MPNSSM2211CPZ-REEL7
End of Life

Analog Devices SSM2211CPZ-REEL7 Class AB audio amplifier, 1-Channel (Mono), 1.5W x 1 @ 4Ohm, 2.7V ~ 5.5V supply, 8-LFCSP (3x3) exposed pad, Surface Mount, Tape & Reel.

$1.7Ref. price · indicative, final on quote
Packaging8-WFDFN Exposed Pad, CSP
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

SSM2211CPZ-REEL7 Technical Specifications
ParameterValue
TypeClass AB
Output type1-Channel (Mono)
Mounting typeSurface Mount
Voltage2.7V ~ 5.5V
Max output power x channels @ load1.5W x 1 @ 4Ohm
Operating temperature-40°C ~ 85°C (TA)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesDifferential Inputs, Shutdown
Case8-WFDFN Exposed Pad, CSP

Product details

1.5 W mono output into 4 Ω — the load-dependent rating

The SSM2211CPZ-REEL7 is a Class AB audio amplifier delivering 1.5 W into a 4 Ω load from a single supply rail. That 1.5 W figure is the max output power per channel at the stated load impedance — a 8 Ω speaker will draw less current and produce lower output power for the same supply voltage, so the 4 Ω rating is the one to use when sizing the speaker for a portable audio design.

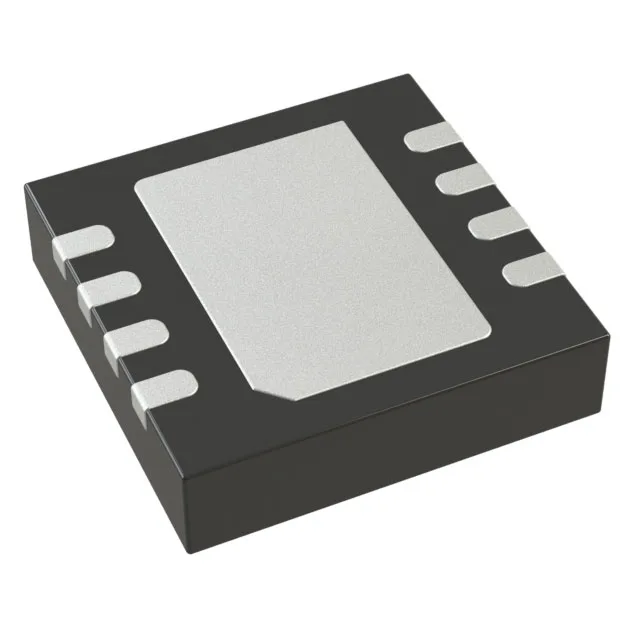

Package and board-fit — 8-LFCSP with exposed pad

The supplier device package is 8-LFCSP (3x3), and the package / case is 8-WFDFN Exposed Pad, CSP; the two descriptions refer to the same physical footprint. The -REEL7 suffix specifies the 7-inch reel quantity — the exact ordering code for automated pick-and-place lines.

Differential inputs and shutdown — what they mean for the circuit

Differential inputs reject common-mode noise picked up on the audio input traces — useful when the amplifier sits near a switching regulator or digital bus on the same PCB. Output type is 1-Channel (Mono). For stereo designs, two devices are needed — one per channel — with independent shutdown control if desired.

Frequently asked questions

What is the difference between SSM2211CPZ-REEL7 and SSM2211SZ-REEL7?

Both share the same SSM2211 die — 1.5 W Class AB amplifier with differential inputs and shutdown. The difference is the package: the CPZ variant uses the 8-LFCSP (3x3) exposed-pad package, while the SZ variant uses the SOIC-8 package. They are not footprint-compatible; the board layout must match the package type.

Who supplies SSM2211CPZ-REEL7 and how is it quoted for volume purchases?

Analog Devices is the manufacturer.
