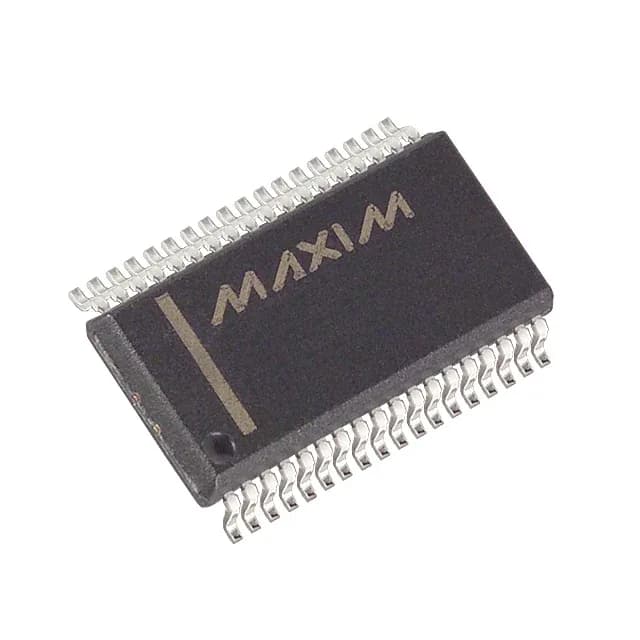

MAX6955AAX+T LED Driver, I²C, 36-SSOP, -40°C to 125°C

MPNMAX6955AAX+T
End of Life

Maxim Integrated MAX6955AAX+T, LED display driver, I²C interface, 7/14/16 segment configuration, 2.7V to 5.5V supply, 22 mA supply current, -40°C to 125°C, 36-SSOP package, Tape & Reel.

$22.65Ref. price · indicative, final on quote
MAX6955AAX+T datasheet
Packaging36-BSOP (0.295", 7.50mm Width)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

MAX6955AAX+T Technical Specifications
ParameterValue
Display typeLED
Mounting typeSurface Mount
Voltage2.7V ~ 5.5V
Current - supply22 mA
InterfaceI²C
Operating temperature-40°C ~ 125°C
PackageTape & Reel (TR); Cut Tape (CT)
Configuration7, 14, 16 Segment
Case36-BSOP (0.295\", 7.50mm Width)

Product details

What this part is and where it fits

The MAX6955AAX+T is a serial-interfaced LED display driver that handles 7-, 14-, or 16-segment configurations over an I²C bus.

Key ratings and what they mean for the BOM

The -40°C to 125°C operating range qualifies this driver for under-hood automotive, outdoor telecom cabinets, and factory-floor HMI panels. The I²C interface keeps the host wiring to two lines (SDA, SCL) plus the supply and ground, but the bus clock rate caps the update speed — fine for static or slow-changing displays, not for high-frame-rate video or scrolling text. If you need faster updates, a parallel-interface or SPI-based driver would be the alternative.

Lifecycle and sourcing

The MAX6955AAX+T carries an Active lifecycle status and is ROHS3 compliant. No last-time-buy or obsolescence notice is in effect. Sourcing is through independent distribution.
