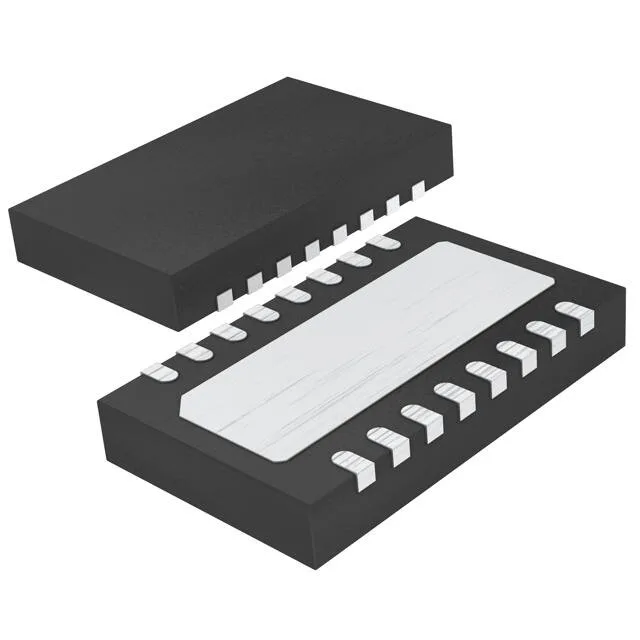

The LTC4217IDHC-12#PBF is a single-channel hot swap controller from Analog Devices with an integrated 2A power switch. It lets you plug a board into a live backplane without blowing fuses or dropping the rail — the internal switch ramps the output, and the programmable current limit, overvoltage (OVP), and undervoltage lockout (UVLO) keep the card from browning out the whole rack. Typical for 12V or 24V line cards, base stations, and industrial controllers where a board swap needs to happen hot.
2A output — sizing the load budget
2A max output is the continuous current the integrated switch can handle. That limits you to cards drawing under about 1.6A after derating for ambient temperature and the exposed-pad thermal resistance. For a small FPGA core, a few sensors, or a comms module, it's enough. If your card needs 3A or more, you step up to a controller with an external FET.
Programmable protection — setting the fault behavior
You can program auto-retry (part tries to restart after a fault), latched fault (stays off until power cycle), current limit level, fault timeout, OVP threshold, and UVLO threshold. That's a lot of flexibility from one small package. For a telecom card that must restart after a transient, set auto-retry. For a safety-critical module that needs a hard lockout on overcurrent, go latched. The timeout resistor sets how long the part waits before declaring a fault — match it to your inrush capacitor charge time.
Active lifecycle, ROHS3 compliant.
