Analog Devices LT1795CFE#PBF — Analog & Data Acquisition

LT1795CFE#PBF Current Feedback Op-Amp, 900V/µs Slew Rate

MPNLT1795CFE#PBF
End of Life

Analog Devices LT® series LT1795CFE#PBF, dual current-feedback operational amplifier, 900 V/µs slew rate, 65 MHz -3 dB bandwidth, 1 A output per channel, 10 V to 30 V supply, 0°C to 70°C, 20-TSSOP exposed-pad package.

$15.4Ref. price · indicative, final on quote

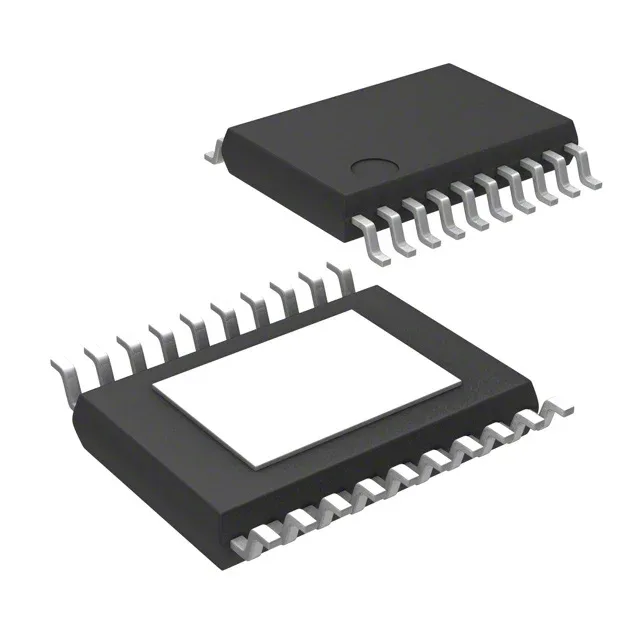

Packaging20-TSSOP (0.173", 4.40mm Width) Exposed Pad
RoHSROHS3 Compliant
SeriesLT®
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

LT1795CFE#PBF specifications
ParameterValue
SeriesLT®
MountingSurface Mount
Amplifier typeCurrent Feedback
Voltage - input offset3 mV
Voltage - supply span30 V
Current - supply29mA (x2 Channels)
Current - input bias10 µA
Current - output (Channel)1 A
Operating temperature0°C ~ 70°C
-3db bandwidth65 MHz
PackageTube
Slew rate900V/µs
Case20-TSSOP (0.173\", 4.40mm Width) Exposed Pad
Number of circuits2

Product details

The LT1795CFE#PBF is a dual current-feedback operational amplifier from the LT® series, designed for applications where high slew rate and high output current are needed simultaneously. Its 900 V/µs slew rate and 65 MHz -3 dB bandwidth suit video distribution, pulse amplifiers, and magnetic-coil drivers. The 1 A per-channel output current is the standout spec — enough to drive low-impedance loads like deflection coils or long cables directly, without a separate buffer stage.

Operates from a 10 V to 30 V supply span.

Package and thermal layout

ROHS3 compliant.

Frequently asked questions

What is the closest functional equivalent to LT1795CFE#PBF?

The AD8008ARMZ is a dual current-feedback op-amp with a 500 MHz bandwidth and 1000 V/µs slew rate, but its output current is limited to 130 mA per channel — about one-eighth the 1 A output of the LT1795CFE#PBF. For applications that need the full 1 A drive, the LT1795CFE#PBF is the part to specify.

What is the bandwidth of LT1795CFE#PBF?

The -3 dB bandwidth is 65 MHz. Combined with the 900 V/µs slew rate, this supports clean amplification of fast pulses and high-frequency analog signals up to tens of megahertz.
