Analog Devices ICM7218DIQI+ — Analog & Data Acquisition

Maxim ICM7218DIQI+ LED Display Driver, 8-Digit 7-Segment

MPNICM7218DIQI+
End of Life

Maxim ICM7218DIQI+ LED display driver, 8-digit 7-segment configuration, parallel interface, 250 µA supply current, 2V to 6V supply range, -20°C to 85°C operating temperature, 28-PLCC (J-Lead) surface-mount package, Tube.

$13.34Ref. price · indicative, final on quote
Packaging28-LCC (J-Lead)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ICM7218DIQI+ specifications
ParameterValue
Display typeLED
MountingSurface Mount
Voltage2V ~ 6V
Current - supply250 µA
InterfaceParallel
Operating temperature-20°C ~ 85°C
PackageTube
Configuration7 Segment
Case28-LCC (J-Lead)
Digits or characters8 Digits

Product details

LED display driver for 8-digit 7-segment numeric readouts

The Maxim ICM7218DIQI+ is a dedicated LED display driver IC designed to drive up to 8 digits of 7-segment common-cathode or common-anode LED displays. It accepts data via a parallel interface, making it straightforward to connect to a microcontroller or logic system without needing a serial protocol. The driver integrates segment current sources, so external current-limiting resistors are not required for most LED panels. Typical applications include panel meters, frequency counters, digital multimeters, and any industrial or test equipment that needs a bright numeric readout.

Supply range and current draw — power-tree fit

Supply range is 2V to 6V. Supply current is 250 µA.

Package and assembly

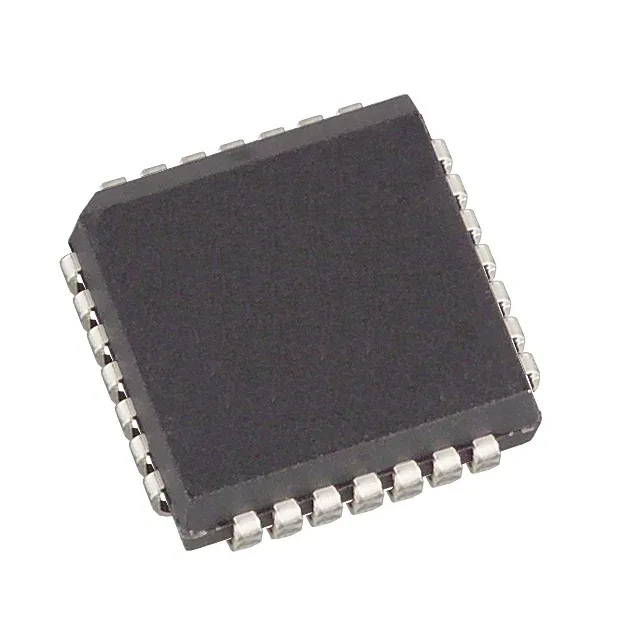

Housed in a 28-PLCC (J-Lead) package with a body size of 11.51 x 11.51 mm. The J-Lead footprint is standard for PLCC and is compatible with reflow soldering.

Frequently asked questions

Is ICM7218DIQI+ available via RFQ confirmation at major distributors?

Stock levels at major distributors vary. The part is sourced to order through independent distribution. For current stock status and lead time, submit an RFQ and we will confirm availability at quote time.
