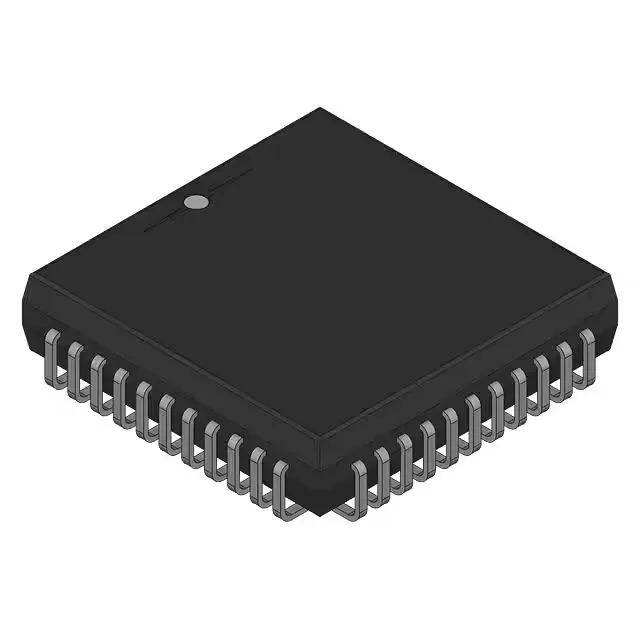

ICM7212MIQH 4-Digit LED Display Decoder/Driver, 44-PLCC

MPNICM7212MIQH
End of Life

Maxim Integrated ICM7212MIQH, four-digit LED display decoder/driver, BCD interface, 7-segment configuration, 4V-6V supply, 200 mA, 44-LCC (J-Lead) surface mount, 44-PLCC (16.59x16.59).

$4.24Ref. price · indicative, final on quote
Analog Devices ICM7212MIQH datasheet (PDF)
Packaging44-LCC (J-Lead)
RoHSNot applicable
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ICM7212MIQH specifications
ParameterValue
Display typeLED
MountingSurface Mount
Voltage4V ~ 6V
Current - supply200 mA
InterfaceBCD
Operating temperature-20°C ~ 85°C
PackageBulk
Configuration7 Segment
Case44-LCC (J-Lead)
Digits or characters4 Digits

Product details

Four-digit LED decoder/driver in 44-PLCC

The ICM7212MIQH is a four-digit LED display decoder/driver from Maxim Integrated, handling BCD input and driving a 7-segment common-cathode display directly. It's the IC you reach for when a panel needs a clean numeric readout without multiplexing overhead — the internal latches and segment drivers do the work, so the host controller just sends BCD data and a digit-select strobe. Supply range is 4 V to 6 V, drawing 200 mA typical — the current budget covers the driver's own consumption plus the LED segment current, so the board's 5 V rail needs to hold regulation under that load.

Package and temperature grade

Rated for -20°C to +85°C operation — this is the industrial temperature band. It lives comfortably in a control cabinet or test-equipment chassis that sees seasonal swings, but not under-hood or outdoor direct-sun exposure without enclosure derating.

Frequently asked questions

Can ICM7212MIQH drive a common cathode 4-digit display?

The ICM7212MIQH is a four-digit LED display decoder/driver configured for 7-segment common-cathode displays. It accepts BCD input and drives the segments and digit lines directly, so the host microcontroller only needs to send the digit data and a strobe.

What is the difference between ICM7212 and ICM7212MIQH?

The ICM7212MIQH is the specific order code for the 44-lead PLCC (J-lead) surface-mount package variant of the ICM7212 family. The base ICM7212 designation covers the function; the suffix 'MIQH' encodes the package and temperature grade (-20°C to +85°C, 44-PLCC).
