Analog Devices ADXL323KCPZ — Discrete Semiconductors
Analog Devices

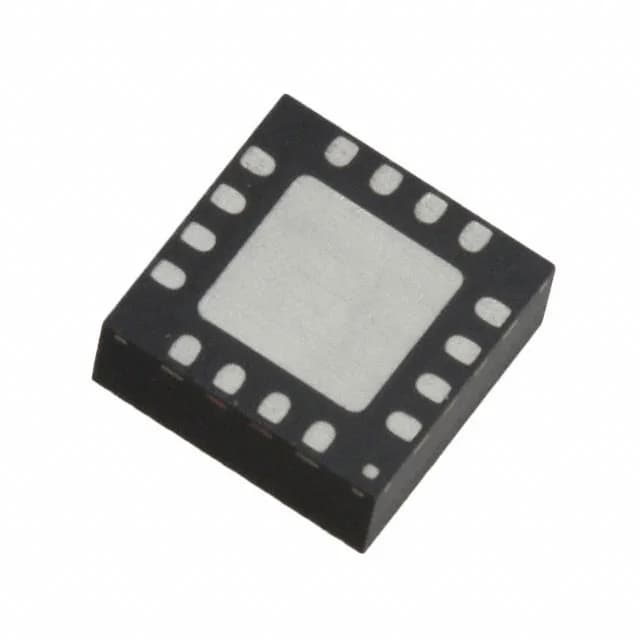

ADXL323KCPZ iMEMS® Analog Accelerometer, ±3.6g, 1.6kHz

MPNADXL323KCPZ
End of Life

Analog Devices ADXL323KCPZ iMEMS® dual-axis analog accelerometer, X and Y axes, ±3.6g range, 300 mV/g sensitivity, 1.6 kHz bandwidth, analog voltage output, 1.8V–5.25V supply, 16-LFCSP-LQ (4x4) package, -25°C to 70°C operating temperature.

$11.16Ref. price · indicative, final on quote
ADXL323KCPZ datasheet
Packaging16-LQFN Exposed Pad, CSP
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

ADXL323KCPZ Technical Specifications
ParameterValue
TypeAnalog
SeriesiMEMS®
Output typeAnalog Voltage
Mounting typeSurface Mount
Voltage1.8V ~ 5.25V
Operating temperature-25°C ~ 70°C (TA)
Bandwidth1.6kHz
AxisX, Y
PackageBulk
Case16-LQFN Exposed Pad, CSP
Acceleration range±3.6g
Sensitivity (mV (g))300

Product details

Dual-axis analog accelerometer for tilt and vibration sensing

The ADXL323KCPZ is an Analog Devices iMEMS® dual-axis analog accelerometer measuring acceleration along the X and Y axes. It outputs a ratiometric analog voltage proportional to the applied acceleration, with a full-scale range of ±3.6 g and a sensitivity of 300 mV/g.

Temperature grade: conditioned environments only

Rated for -25°C to 70°C ambient, this part is specified for indoor, office, or consumer equipment — not for automotive under-hood, outdoor telecom cabinets, or industrial ovens.

Active lifecycle, no end-of-life concern

The ADXL323KCPZ is listed as Active and ROHS3 compliant. No last-time-buy or obsolescence notice applies. This part is suitable for new designs and production builds without near-term supply risk.

Frequently asked questions

Is ADXL323KCPZ available via RFQ confirmation?

Stock levels change daily. We confirm availability and lead time at the time of your RFQ. Submit a request for current stock and pricing.

What is the sensitivity of ADXL323KCPZ?

Sensitivity is 300 mV/g. At 1 g (gravity), the output changes by 300 mV. The full-scale range is ±3.6 g.

Is ADXL323KCPZ RoHS compliant?

Yes, it is ROHS3 compliant.

Does ADXL323KCPZ measure gravity?

Yes. As a dual-axis accelerometer, it measures static acceleration due to gravity (tilt) along the X and Y axes. The ±3.6 g range covers ±90° tilt with margin.

ADXL323KCPZ vs ADXL335 difference?

The ADXL335 is a 3-axis (±3 g) analog accelerometer in a 16-pin LFCSP, while the ADXL323KCPZ is a 2-axis (X, Y) part with a ±3.6 g range. Both use analog voltage output and similar supply ranges. Choose the ADXL335 if you need Z-axis measurement; choose the ADXL323KCPZ if you only need X and Y and want slightly higher g-range.
