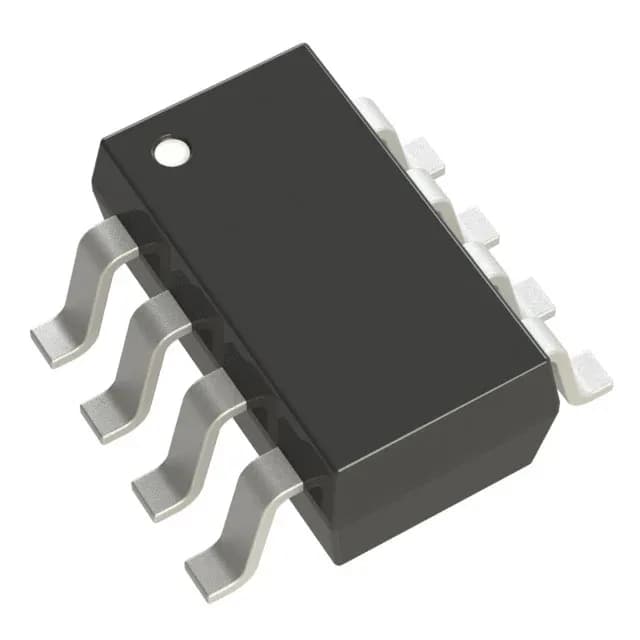

ADM1170-2AUJZ-RL7 Hot Swap Controller, I²C, 2.7V–16.5V

MPNADM1170-2AUJZ-RL7
End of Life

Analog Devices ADM1170-2AUJZ-RL7, Hot Swap Controller, 1 channel, I²C interface, 2.7V to 16.5V supply, 650 µA supply current, TSOT-23-8 package, -40°C to 85°C.

$6.86Ref. price · indicative, final on quote
ADM1170-2AUJZ-RL7 datasheet
PackagingSOT-23-8 Thin, TSOT-23-8
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

ADM1170-2AUJZ-RL7 Technical Specifications
ParameterValue
TypeHot Swap Controller
Mounting typeSurface Mount
Voltage2.7V ~ 16.5V
Current - supply650 µA
Operating temperature-40°C ~ 85°C
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesI²C, Latched Fault, UVLO
ApplicationsGeneral Purpose
CaseSOT-23-8 Thin, TSOT-23-8
Internal switchNo
Number of channels1
Programmable featuresCurrent Limit, Fault Timeout, Turn On Voltage

Product details

Programmable features and fault handling

Three programmable parameters — current limit, fault timeout, and turn-on voltage (UVLO) — let the designer tailor the controller to the load without changing the external FET. The latched fault behaviour means a sustained overcurrent or short shuts the FET off and holds it off until the input is cycled or the part is reset; no automatic retry, which is the right behaviour for a backplane slot that should stay off until a human clears the fault.

Package and footprint

The TSOT-23-8 package (SOT-23-8 Thin variant) is a surface-mount footprint common for small hot swap controllers. Check the MSL level before the reflow — the datasheet will state the floor life, and if it is MSL 1 you can run it straight off the reel; higher levels need a bake before the oven.

Sourcing and lifecycle

ROHS3 compliance is confirmed, so no exemption paperwork is needed for EU-market builds.

Frequently asked questions

Is ADM1170-2AUJZ-RL7 RoHS compliant?

Yes, the ADM1170-2AUJZ-RL7 is ROHS3 compliant, which covers the EU RoHS exemption list and is accepted in most global markets without additional documentation.

Does ADM1170-2AUJZ-RL7 have an I2C interface?

Yes, the controller includes an I²C interface for reading current and voltage telemetry, which lets a system monitor the load without adding a separate ADC.

Does the ADM1170-2AUJZ-RL7 have internal power switches?

No, the ADM1170-2AUJZ-RL7 does not have an internal switch. It drives an external N-channel MOSFET, so the FET's Rds(on) and current rating must be selected to match the load.

When sourcing ADM1170-2AUJZ-RL7, what's the closest functional second-source?

The ADM1176-2ARMZ-R7 is a close functional peer — same I²C interface, same programmable features, same temperature range — but it adds a monitoring function. The ADM4210-2AUJZ-RL7 is a simpler controller without I²C, which may suit designs that do not need telemetry.
