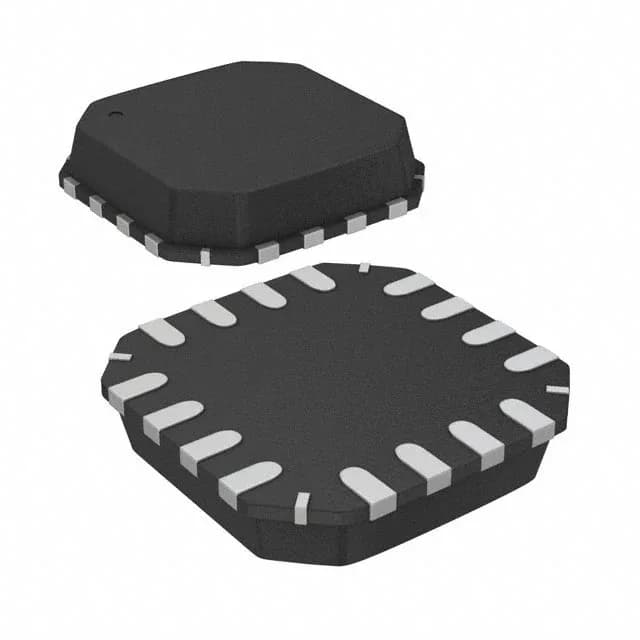

AD8295ACPZ-R7 Instrumentation Amp, 1 MHz, 16-LFCSP

MPNAD8295ACPZ-R7
End of Life

Analog Devices AD8295ACPZ-R7, Instrumentation Amplifier, 3 Circuits, 1 MHz Gain Bandwidth, 2 V/µs Slew Rate, 4.6–36 V Supply, 16-LFCSP-VQ (4x3.75), -40°C to 85°C, Tape & Reel.

$9.33Ref. price · indicative, final on quote
Packaging16-VQFN, CSP
RoHSROHS3 Compliant
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

AD8295ACPZ-R7 specifications
ParameterValue
MountingSurface Mount
Amplifier typeInstrumentation
Voltage - input offset120 µV
Voltage - supply span4.6 V
Current - supply2mA
Current - input bias500 pA
Current - output (Channel)18 mA
Operating temperature-40°C ~ 85°C
-3db bandwidth1.2 MHz
Gain bandwidth product1 MHz
PackageTape & Reel (TR); Cut Tape (CT)
Slew rate2V/µs
Case16-VQFN, CSP
Number of circuits3

Product details

Three amplifiers on one die — what that means for a sensor front-end

The AD8295ACPZ-R7 from Analog Devices packs three amplifier circuits into a single 16-LFCSP-VQ package: one precision instrumentation amplifier and two general-purpose op-amps. This integration saves board area and simplifies routing for signal-conditioning chains that need a programmable-gain stage, a filter buffer, or a reference driver alongside the primary sensor amplifier. The supply span runs from 4.6 V to 36 V, so it works on a single 5 V rail or a ±15 V split supply without a regulator change.

Package and footprint — what the 16-LFCSP-VQ needs

The package is a 16-lead LFCSP-VQ measuring 4 mm × 3.75 mm (supplier device package 16-LFCSP-VQ). Surface-mount assembly with standard lead-free reflow profiles works;.

Frequently asked questions

What is the difference between AD8295ACPZ and AD8295ACPZ-R7?

The AD8295ACPZ-WP is the tray-packaged version. Electrically they are identical — the -R7 suffix only changes the shipping medium.

What are the equivalent or replacement parts for AD8295ACPZ-R7?

Within the AD8295 family, the AD8295BCPZ-WP offers lower input offset (60 µV) and lower input bias current (200 pA) for tighter error budgets. The AD8222ACPZ-RL is a two-channel instrumentation amplifier with 7 MHz bandwidth but only two circuits versus the AD8295's three. Neither is a drop-in replacement — verify pin-compatibility and circuit count against your design.
