Analog Devices AD7569JPZ — Discrete Semiconductors

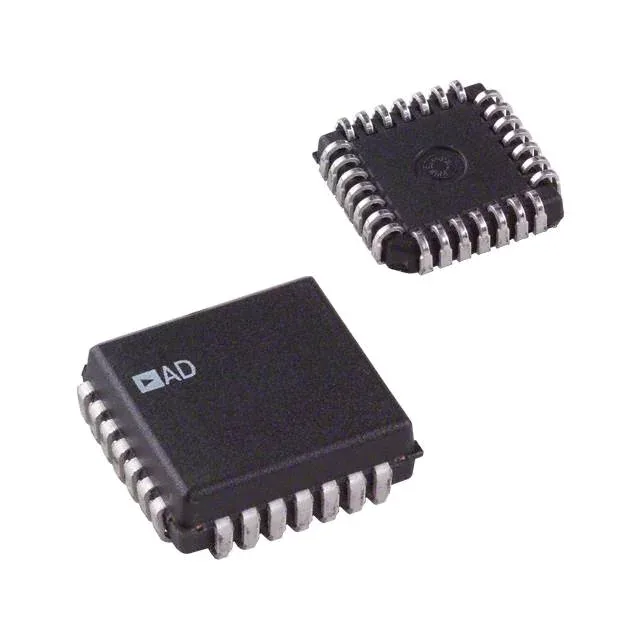

AD7569JPZ Analog Devices LC²MOS Interface IC, 28-PLCC

MPNAD7569JPZ
End of Life

Analog Devices LC²MOS, Interface IC, Bus Interface, Analog I/O, 28-LCC (J-Lead), 28-PLCC (11.51x11.51), Tube.

$46.98Ref. price · indicative, final on quote
Analog Devices AD7569JPZ datasheet (PDF)
Packaging28-LCC (J-Lead)
RoHSROHS3 Compliant
SeriesLC²MOS
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

AD7569JPZ specifications
ParameterValue
SeriesLC²MOS
MountingSurface Mount
Voltage4.75V ~ 5.25V
InterfaceBus
PackageTube
ApplicationsAnalog I/O
Case28-LCC (J-Lead)

Product details

LC²MOS interface IC in 28-PLCC

The AD7569JPZ is a specialized interface IC from Analog Devices, built on the LC²MOS process and intended for analog I/O applications over a bus interface.

Package and board-fit

Housed in a 28-lead LCC with J-leads (28-PLCC, 11.51 x 11.51 mm body), the AD7569JPZ is a surface-mount device. The J-lead footprint is compatible with standard PLCC-28 sockets or direct solder to the PCB — the 0.050-inch pitch and 0.025-inch square pads are the same as any JEDEC PLCC-28 layout. Supplied in a tube, not tape-and-reel, so it is suited for prototype builds or low-volume production where pick-and-place reels are not justified.

Frequently asked questions

What is the closest functional second-source for AD7569JPZ?

The AD7569JRZ is the closest sibling — same LC²MOS series, bus interface, analog I/O application, and 4.75-5.25 V supply range. The key difference is package: the JRZ is in a 28-SOIC (wide-body), while the JPZ is in a 28-PLCC. They are not pin-compatible; a board designed for the PLCC footprint will not accept the SOIC without a layout change.
