Analog Devices AD2S99BPZ — Clock & Timing ICs
Analog Devices

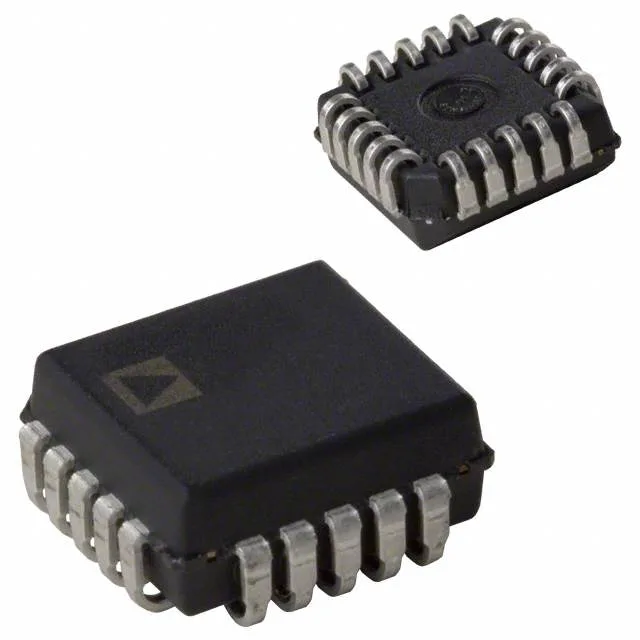

AD2S99BPZ Sinusoidal Oscillator IC – 2kHz-20kHz, 20-PLCC

MPNAD2S99BPZ
End of Life

Analog Devices AD2S99BPZ, Clock & Timing ICs, Oscillator Sinusoidal, 2kHz ~ 20kHz programmable, ±4.75V ~ 5.25V supply, -40°C ~ 85°C, 20-LCC (J-Lead) surface mount, Tube.

$37.51Ref. price · indicative, final on quote
AD2S99BPZ datasheet
Packaging20-LCC (J-Lead)
StockContact for availability
MOQ1 pcs
  • 100% new & originalTraceable channels only — no refurbs, no pulls, no remarked parts.
  • Date & lot codes on quoteStated per line before you commit; label photos on request.
  • MSL-compliant ESD packingMoisture-sealed bags with indicator cards; reels photo-verified.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

AD2S99BPZ Technical Specifications
ParameterValue
TypeOscillator, Sinusoidal
Mounting typeSurface Mount
Voltage±4.75V ~ 5.25V
Current - supply8 mA
Frequency2kHz ~ 20kHz
Operating temperature-40°C ~ 85°C
PackageTube
Case20-LCC (J-Lead)

Product details

What this sinusoidal oscillator does on your board

The AD2S99BPZ is a programmable sinusoidal oscillator from Analog Devices, designed to generate a clean sine-wave output from 2 kHz to 20 kHz. That frequency range makes it a natural fit for resolver excitation in motor-control systems — the sine wave drives the resolver's primary winding, and the position feedback comes back on the secondary. It runs on a split supply of ±4.75V to 5.25V, pulling 8 mA typical. If your board only has a single 5V rail, you will need to generate the negative supply — a charge-pump inverter or a small DC-DC module handles it.

Temperature grade and package — what they mean for assembly and environment

The 20-PLCC (9x9) package is a surface-mount body with J-bend leads. Reflow profile is standard; hand-soldering is possible if you have a fine tip and steady hands, but the J-lead hides the joint under the package edge, so inspect with a scope.

Sourced per RFQ — current pricing and lead time confirmed at quote time. The Tube package quantity matches typical engineering and low-volume production runs.

Frequently asked questions

What is the frequency range of AD2S99BPZ?

The AD2S99BPZ covers 2 kHz to 20 kHz, programmable. That spans the common resolver excitation frequencies used in industrial motor feedback.

What supply voltage does AD2S99BPZ need?

It requires a dual supply of ±4.75V to 5.25V. The 8 mA supply current is typical — budget for the negative rail generation if your board only has a single 5V supply.

What package does AD2S99BPZ use?

20-LCC (J-Lead), also described as 20-PLCC (9x9). Surface-mount, J-lead form factor — inspect solder joints under magnification after reflow.
