TCR3UG25A,LF
Toshiba Semiconductor
TCR3UGTape & Reel (TR); Cut Tape (CT)-40°C ~ 85°C (TJ)
Ref. price$0.46
Lead time on requestGet quote
Toshiba Semiconductor TCR3 Power Management Series
5 variants · Toshiba Semiconductor
About the Toshiba Semiconductor TCR3 Power Management Series
The Toshiba Semiconductor TCR3 Power Management Series series groups 5 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common control features of Enable, mounting of Surface Mount and number of regulators of 1. Variants differ by case, operating temperature and protection features, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 4-XFBGA, WLCSP · SC-74A, SOT-753
- Operating temperature
- -40°C ~ 85°C · -40°C ~ 85°C (TJ)
- Protection features
- Inrush Current, Over Current, Over Temperature · Inrush Current, Over Current, Thermal Shutdown
- Voltage - output (Min (Fixed))
- 2.5V · 2.9V · 5V
- Voltage dropout
- 0.195V @ 300mA · 0.27V @ 300mA · 0.327V @ 300mA
Shared specifications
- Control features
- Enable
- Mounting
- Surface Mount
- Number of regulators
- 1
- Output configuration
- Positive
- Output current
- 300mA
- Output type
- Fixed
- Package
- Tape & Reel (TR); Cut Tape (CT)
- PSRR
- 70dB (1kHz)
- Voltage - input
- 5.5V
Variant comparison

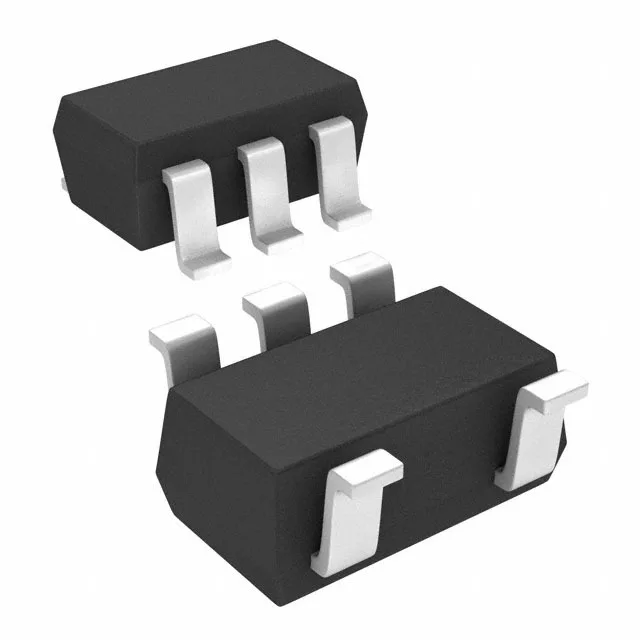

| Parameter | TCR3UG25A,LF | TCR3DF29,LM(CT | TCR3UG50A,LF |
|---|---|---|---|
| Case | 4-XFBGA, WLCSP | SC-74A, SOT-753 | 4-XFBGA, WLCSP |
| Operating temperature | -40°C ~ 85°C (TJ) | -40°C ~ 85°C | -40°C ~ 85°C (TJ) |
| Protection features | Inrush Current, Over Current, Thermal Shutdown | Inrush Current, Over Current, Over Temperature | Inrush Current, Over Current, Thermal Shutdown |
| Voltage - output (Min (Fixed)) | 2.5V | 2.9V | 5V |
| Voltage dropout | 0.327V @ 300mA | 0.27V @ 300mA | 0.195V @ 300mA |
Request a quote on any Toshiba Semiconductor TCR3 Power Management Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
