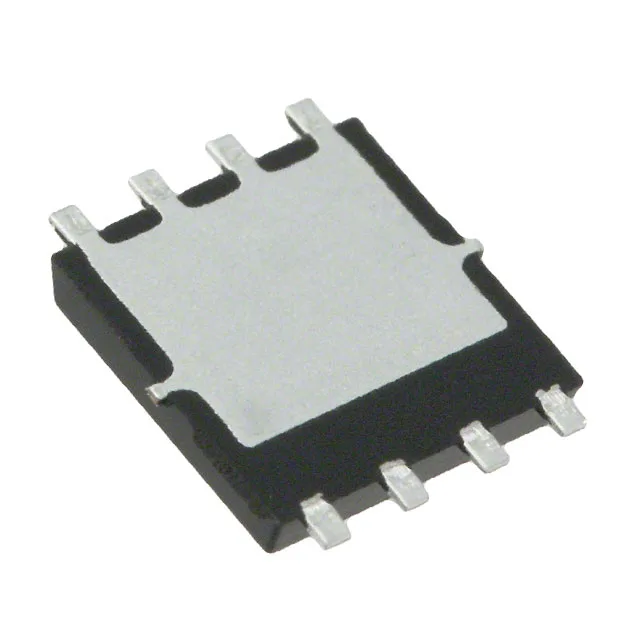

Toshiba Semiconductor and Storage TPCA8026(TE12L,Q,M
MPNTPCA8026(TE12L,Q,M
Obsolete
$1.9000Ref. price · indicative, final on quote
Independent supplier — new & surplus stockAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | U-MOSIV |
| FET type | N-Channel |
| Mounting | Surface Mount |
| Drain to source voltage | 30 V |
| Drive voltage (Max rds on, min rds on) | 4.5V, 10V |
| Current - continuous drain (Id) @ 25°C | 45A (Ta) |
| Power dissipation | 1.6W (Ta), 45W (Tc) |
| Operating temperature | 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Vgs | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Case | 8-PowerVDFN |
| Vgs(th) (Max) @ id | 2.5V @ 1mA |
| Rds on (Max) @ id, vgs | 2.2mOhm @ 23A, 10V |
| Gate charge (Qg) (Max) @ vgs | 113 nC @ 10 V |
| Input capacitance (Ciss) (Max) @ vds | 4200 pF @ 10 V |
