TPS74625PQWDRBRQ1
Texas Instruments
Surface Mount, Wettable FlankTape & Reel (TR); Cut Tape (CT)-40°C ~ 125°C
Ref. price$1.33
Lead time on requestGet quote
Texas Instruments TPS7 Dc Dc Modules Series
7 variants · Texas Instruments
About the Texas Instruments TPS7 Dc Dc Modules Series
The Texas Instruments TPS7 Dc Dc Modules Series series groups 7 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common number of regulators of 1, output configuration of Positive and output type of Fixed. Variants differ by case, control features and current - quiescent, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 8-VDFN Exposed Pad · 20-PowerTSSOP (0.173\", 4.40mm Width) · TO-261-4, TO-261AA
- Control features
- Current Limit, Enable · Enable, Power Good · Enable, Reset
- Current - quiescent
- 26 µA · 36 µA · 40 µA · 125 µA
- Mounting
- Surface Mount · Surface Mount, Wettable Flank
- Operating temperature
- -40°C ~ 125°C · -40°C ~ 125°C (TA) · -40°C ~ 150°C (TJ)
- Output current
- 1A · 150mA
- Protection features
- Over Current, Over Temperature, Reverse Polarity · Over Current, Over Temperature, Under Voltage Lockout (UVLO) · Over Current, Over Temperature, UVLO
- PSRR
- 53dB ~ 30dB (1kHz ~ 1MHz) · 55dB (1kHz) · 60dB (1kHz) · 60dB ~ 30dB (1kHz ~ 1MHz)
Shared specifications
- Number of regulators
- 1
- Output configuration
- Positive
- Output type
- Fixed
- Package
- Tape & Reel (TR); Cut Tape (CT)
Variant comparison
| Parameter | TPS74625PQWDRBRQ1 | TPS76750QPWPRQ1 | TPS78525BQWDRBRQ1 | TPS7B8433QDCYRQ1M3 |
|---|---|---|---|---|

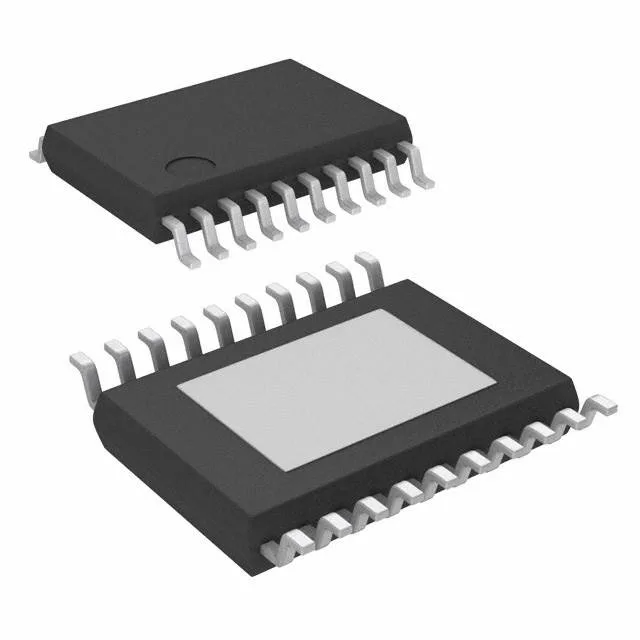

| Case | 8-VDFN Exposed Pad | 20-PowerTSSOP (0.173\", 4.40mm Width) | 8-VDFN Exposed Pad | TO-261-4, TO-261AA |
| Control features | Enable, Power Good | Enable, Reset | Current Limit, Enable | Current Limit, Enable |
| Current - quiescent | 36 µA | 125 µA | 40 µA | 26 µA |
| Mounting | Surface Mount, Wettable Flank | Surface Mount | Surface Mount, Wettable Flank | Surface Mount |
| Operating temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) |
| Output current | 1A | 1A | 1A | 150mA |
| Protection features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity | Over Current, Over Temperature, UVLO | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| PSRR | 53dB ~ 30dB (1kHz ~ 1MHz) | 60dB (1kHz) | 60dB ~ 30dB (1kHz ~ 1MHz) | 55dB (1kHz) |
Request a quote on any Texas Instruments TPS7 Dc Dc Modules Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
