SN74HC165D
Texas Instruments
Tube-40°C~125°CParallel or Serial to Serial
Ref. price$1.1600
Lead time on requestGet quote ›
Texas Instruments SN74 Series
166 variants · Texas Instruments
About the Texas Instruments Texas Instruments SN74 Series series
The Texas Instruments Texas Instruments SN74 Series series groups 166 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common logic type of Shift Register, number of bits per element of 8 and number of elements of 1. Variants differ by case, function and mounting type, so you can match the exact case your application requires using the selection guide below.
Select a variant by
- Case
- 16-DIP (0.300\", 7.62mm) · 16-SOIC (0.154\", 3.90mm Width) · 16-SOIC (0.295\", 7.50mm Width) · 16-SSOP (0.209\", 5.30mm Width) · 16-TSSOP (0.173\", 4.40mm Width) · 16-XFQFN Exposed Pad
- Function
- Parallel or Serial to Serial · Serial to Parallel · Serial to Parallel, Serial
- Mounting type
- Surface Mount · Through Hole
- Operating temperature
- -55°C~125°C · -40°C~85°C · -40°C~125°C
- Output type
- Complementary · Tri-State
- Package
- Bulk · Tape & Reel (TR); Cut Tape (CT) · Tube
Variant comparison

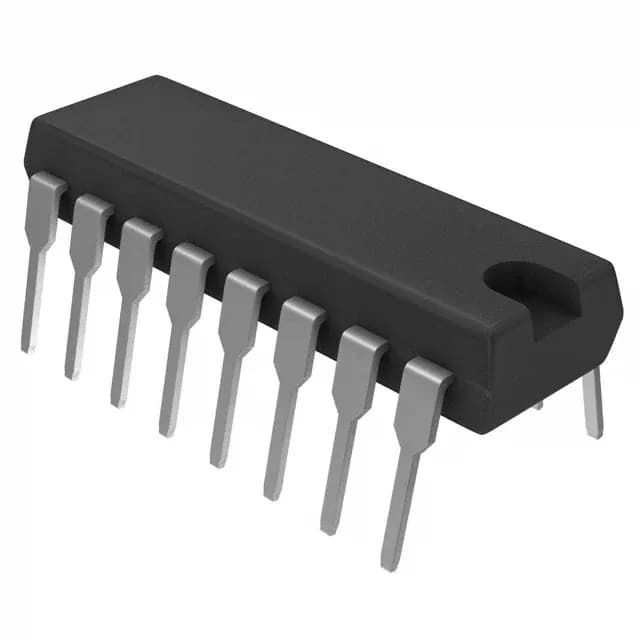

| Parameter | SN74HC165D | SN74HC165DBR | SN74HC165DR | SN74HC165DRG3 | SN74HC165DT | SN74HC165N |
|---|---|---|---|---|---|---|
| Case | 16-SOIC (0.154\", 3.90mm Width) | 16-SSOP (0.209\", 5.30mm Width) | 16-SOIC (0.154\", 3.90mm Width) | 16-SOIC (0.154\", 3.90mm Width) | 16-SOIC (0.154\", 3.90mm Width) | 16-DIP (0.300\", 7.62mm) |
| Function | Parallel or Serial to Serial | Parallel or Serial to Serial | Parallel or Serial to Serial | Parallel or Serial to Serial | Parallel or Serial to Serial | Parallel or Serial to Serial |
| Mounting type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Operating temperature | -40°C~125°C | -40°C~125°C | -40°C~125°C | -40°C~125°C | -40°C~125°C | -40°C~125°C |
| Output type | Complementary | Complementary | Complementary | Complementary | Complementary | Complementary |
| Package | Tube | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube |
Shared specifications
- Logic type
- Shift Register
- Number of bits per element
- 8
- Number of elements
- 1
- Voltage
- 2V ~ 6V
Request a quote on any Texas Instruments SN74 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Texas Instruments Texas Instruments SN74 Series variants differ?
- Texas Instruments SN74 Series part numbers differ by case, function, mounting type and operating temperature. Use the selection guide above to pick by case.
- How many Texas Instruments Texas Instruments SN74 Series part numbers are listed?
- 166 Texas Instruments Texas Instruments SN74 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Texas Instruments Texas Instruments SN74 Series?
- Request a quote (RFQ) for any Texas Instruments SN74 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
