MAX3227IDB
Texas Instruments
Tube-40°C ~ 85°CTransceiver
Ref. price$2.34
Lead time on requestGet quote
Texas Instruments MAX3 Discrete Semiconductors Series
6 variants · Texas Instruments
About the Texas Instruments MAX3 Discrete Semiconductors Series
The Texas Instruments MAX3 Discrete Semiconductors Series series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common duplex of Full, mounting of Surface Mount and protocol of RS232. Variants differ by case, data rate and number of drivers (Receivers), so you can match the exact case your application requires using the selection guide below. All listed Texas Instruments MAX3 Discrete Semiconductors Series part numbers are active and orderable.
Select a variant by
- Case
- 16-SSOP (0.209\", 5.30mm Width) · 20-TSSOP (0.173\", 4.40mm Width) · 28-SOIC (0.295\", 7.50mm Width) · 28-SSOP (0.209\", 5.30mm Width)
- Data rate
- 1Mbps · 250kbps
- Number of drivers (Receivers)
- 1/1 · 2/2 · 3/5 · 5/3
- Operating temperature
- -40°C ~ 85°C · 0°C ~ 70°C
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Receiver hysteresis
- 300 mV · 500 mV
Shared specifications
- Duplex
- Full
- Mounting
- Surface Mount
- Protocol
- RS232
- Type
- Transceiver
- Voltage
- 3V ~ 5.5V
Variant comparison

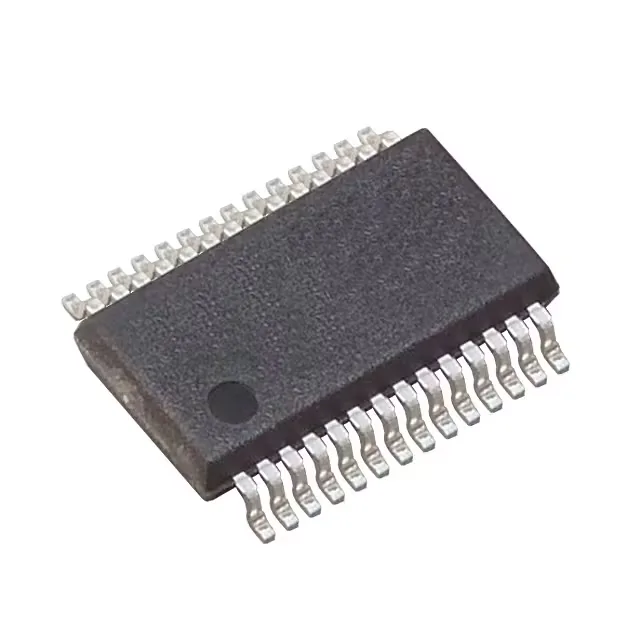

| Parameter | MAX3223IPWR | MAX3227IDBR | MAX3237ECDWR | MAX3243CDBR | MAX3243IDW | MAX3227IDB |
|---|---|---|---|---|---|---|
| Case | 20-TSSOP (0.173\", 4.40mm Width) | 16-SSOP (0.209\", 5.30mm Width) | 28-SOIC (0.295\", 7.50mm Width) | 28-SSOP (0.209\", 5.30mm Width) | 28-SOIC (0.295\", 7.50mm Width) | 16-SSOP (0.209\", 5.30mm Width) |
| Data rate | 250kbps | 1Mbps | 1Mbps | 250kbps | 250kbps | 1Mbps |
| Number of drivers (Receivers) | 2/2 | 1/1 | 5/3 | 3/5 | 3/5 | 1/1 |
| Operating temperature | -40°C ~ 85°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube | Tube |
| Receiver hysteresis | 500 mV | 500 mV | 500 mV | 300 mV | 500 mV | 500 mV |
Request a quote on any Texas Instruments MAX3 Discrete Semiconductors Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
