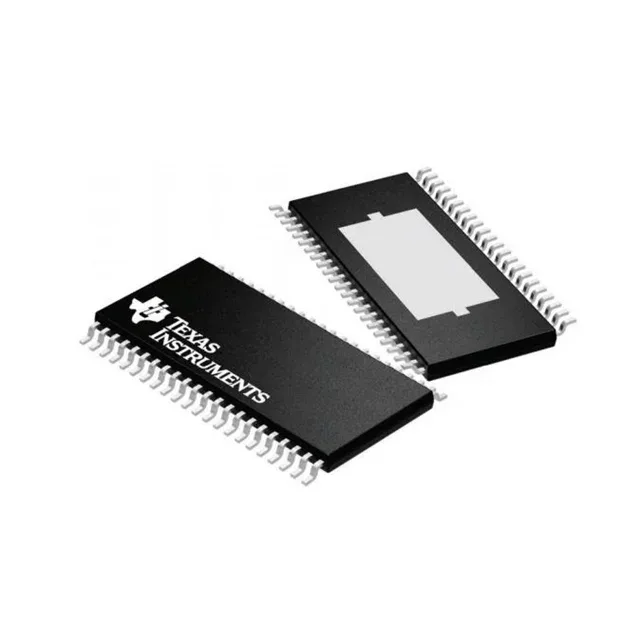

DRV8312DDWR
Texas Instruments
Tape & Reel (TR); Cut Tape (CT)PWM-40°C ~ 150°C (TJ)
Ref. price$7.28
Lead time on requestGet quote
Texas Instruments DRV8 Analog Series
20 variants · Texas Instruments
About the Texas Instruments DRV8 Analog Series
The Texas Instruments DRV8 Analog Series series groups 20 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common mounting of Surface Mount. Variants differ by applications, case and interface, so you can match the exact applications your application requires using the selection guide below.
Select a variant by
- Applications
- DC Motors, General Purpose · DC Motors, General Purpose, Stepper Motors · General Purpose · Haptic Feedback · Printer
- Case
- 8-PowerSOIC (0.154\", 3.90mm Width) · 16-PowerTSSOP (0.173\", 4.40mm Width) · 20-VFQFN Exposed Pad · 24-VFQFN Exposed Pad · 28-PowerTSSOP (0.173\", 4.40mm Width) · 28-WFQFN Exposed Pad · 44-TSSOP (0.244\", 6.20mm Width) Exposed Pad
- Interface
- Analog, PWM · Logic · Parallel · PWM
- Operating temperature
- -40°C ~ 125°C (TA) · -40°C ~ 150°C (TJ) · -40°C ~ 190°C (TJ)
- Output configuration
- Differential · Half Bridge (2) · Half Bridge (3) · Half Bridge (4) · Low Side (4)
- Package
- Tape & Reel (TR); Cut Tape (CT) · Tube
- Technology
- DMOS · NMOS · Power MOSFET
- Voltage
- 0V ~ 5.3V · 0V ~ 5.5V · 3V ~ 5.5V · 4.5V ~ 48V · 8V ~ 38V · 8V ~ 45V · 8.2V ~ 45V · 8.2V ~ 60V · 10.8V ~ 13.2V
Shared specifications
- Mounting
- Surface Mount
Variant comparison
| Parameter | DRV8312DDWR | DRV8434PRGER | DRV8436PRGER | DRV8662RGPT | DRV8805PWP | DRV8814PWPR |
|---|---|---|---|---|---|---|
| Applications | DC Motors, General Purpose | General Purpose | General Purpose | Haptic Feedback | General Purpose | General Purpose |
| Case | 44-TSSOP (0.244\", 6.20mm Width) Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 16-PowerTSSOP (0.173\", 4.40mm Width) | 28-PowerTSSOP (0.173\", 4.40mm Width) |
| Interface | PWM | PWM | PWM | Analog, PWM | Logic | Parallel |
| Operating temperature | -40°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Output configuration | Half Bridge (3) | Half Bridge (2) | Half Bridge (2) | Differential | Low Side (4) | Half Bridge (4) |
| Package | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tape & Reel (TR); Cut Tape (CT) | Tube | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET |
| Voltage | 10.8V ~ 13.2V | 4.5V ~ 48V | 0V ~ 5.3V | 3V ~ 5.5V | 8.2V ~ 60V | 8V ~ 45V |
Request a quote on any Texas Instruments DRV8 Analog Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
