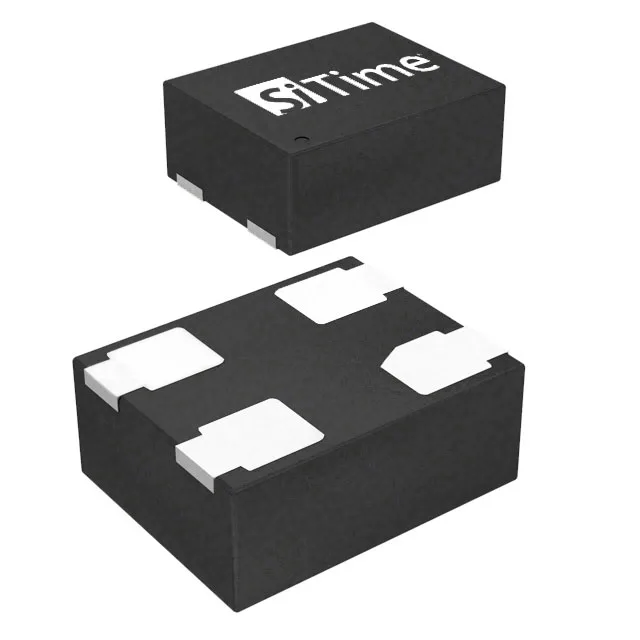

SIT1602BI-11-28E-37.500000
SiTime
Enable/Disable0.031\" (0.80mm)-40°C~85°C
Ref. price$1.4900
Lead time on requestGet quote
SiTime SIT1602BI Series
14113 variants · SiTime
About the SiTime SIT1602BI Series
The SiTime SIT1602BI Series series groups 14113 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common absolute pull range of -, base resonator of MEMS and case of 4-SMD, No Lead. Variants differ by current - supply, frequency and frequency stability, so you can match the exact current - supply your application requires using the selection guide below.
Select a variant by
- Current - supply
- 4.1mA · 4.2mA · 4.5mA
- Frequency
- 3.57 MHz · 4.096 MHz · 7.3728 MHz · 25 MHz · 33.3333 MHz · 37.5 MHz · 40.5 MHz · 50 MHz · 66.66 MHz · 74.175824 MHz · 77.76 MHz
- Frequency stability
- ±20ppm · ±25ppm · ±50ppm
- Function
- - · Enable/Disable · Standby (Power Down)
- Operating temperature
- -40°C ~ 85°C · -40°C~85°C
- Size (Dimension)
- 0.098\" L x 0.079\" W (2.50mm x 2.00mm) · 0.126\" L x 0.098\" W (3.20mm x 2.50mm)
- Voltage
- 1.8V · 2.25V ~ 3.63V · 2.5V · 2.8V · 3V · 3.3V
Shared specifications
- Absolute pull range
- -
- Base resonator
- MEMS
- Case
- 4-SMD, No Lead
- Height - seated
- 0.031\" (0.80mm)
- Mounting
- Surface Mount
- Output
- HCMOS, LVCMOS
- Package
- Strip
- Ratings
- -
- Spread spectrum bandwidth
- -
- Type
- XO (Standard)
Variant comparison
| Parameter | SIT1602BI-11-28E-37.500000 | SIT1602BI-11-28N-77.760000 | SIT1602BI-11-30E-37.500000 | SIT1602BI-12-18S-40.500000 | SIT1602BI-12-25N-66.660000 | SIT1602BI-13-28E-33.333300 |
|---|---|---|---|---|---|---|
| Current - supply | 4.5mA | 4.5mA | 4.5mA | 4.1mA | 4.2mA | 4.5mA |
| Frequency | 37.5 MHz | 77.76 MHz | 37.5 MHz | 40.5 MHz | 66.66 MHz | 33.3333 MHz |
| Frequency stability | ±20ppm | ±20ppm | ±20ppm | ±25ppm | ±25ppm | ±50ppm |
| Function | Enable/Disable | - | Enable/Disable | Standby (Power Down) | - | Enable/Disable |
| Operating temperature | -40°C~85°C | -40°C~85°C | -40°C~85°C | -40°C~85°C | -40°C~85°C | -40°C~85°C |
| Size (Dimension) | 0.098\" L x 0.079\" W (2.50mm x 2.00mm) | 0.098\" L x 0.079\" W (2.50mm x 2.00mm) | 0.098\" L x 0.079\" W (2.50mm x 2.00mm) | 0.098\" L x 0.079\" W (2.50mm x 2.00mm) | 0.098\" L x 0.079\" W (2.50mm x 2.00mm) | 0.098\" L x 0.079\" W (2.50mm x 2.00mm) |
| Voltage | 2.8V | 2.8V | 3V | 1.8V | 2.5V | 2.8V |
Request a quote on any SiTime SIT1602BI Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
